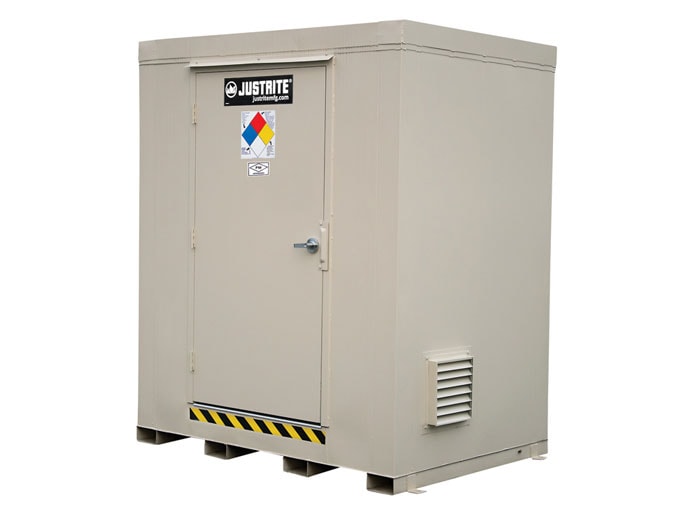

6-Drum, 2-Hour Fire-Rated Outdoor Safety Locker - 912060

Model No
912060
Request a Quote

Usually ships in 40 days Please contact customer service at
800-798-9250 for lead times.

Warranty icon

Made in USA

Compliance Complies with NFPA Code 30 EPA Compliance
Approvals FM Approval

Product Summary


  • 2-hour fire-rated construction for safe and secure storage of flammables and combustibles
  • 90-minute fire rated door
  • Meets EPA, NFPA 30 and NFPA 1 requirements; FM-approved
  • Customizable with a variety of optional features and accessories

Description

Standard features include:

  • 2-hour fire-rated construction — backed by a 15-year structural warranty
  • 90-minute fire-rated door — third party tested and labeled
  • Gravity air flow vents — UL Listed fire dampers with fusible links
  • Secondary containment — leakproof all welded sump
  • Removable, galvanized steel grate flooring
  • 42-inch (1.07-m) wide door with UL Listed, keyed lockset for security
  • Door closer — ensures doors close automatically
  • NFPA 704 diamond decal provides "Right to Know" information
  • Multiple static grounding connections
  • Anchoring plates for maximum hold down protection
  • Chemical and UV resistant coating, inside and out
  • Forklift channels for easy relocation
  • Meets EPA, NFPA 30 and NFPA 1 requirements
  • FM-approved — including third party tested, fire-rated wall and roof design

Customize the locker to meet specific applications with a variety of optional features and accessories, including loading ramp, shelving, grounding kit, fire protection, heating/cooling, insulation, and lighting packages.

NOTE:  Exterior dimensions include anchoring plates and door hardware.

Specifications

More Information
Model No 912060
UPC 697841158634
International Model No. 912060
Color Bone
Material Specifications Steel
FM Approval Yes
UL Approval Doors
Complies with NFPA Code 30 Yes
Complies with NFPA 1 Fire-Code Yes
EPA Compliance Yes
Dimensions, Exterior 99" H x 95" W x 66" D
2515mm H x 2413mm W x 1676mm D
Dimensions, Interior 82.5" H x 77.5" W x 53.5" D
2096mm H x 1969mm W x 1359mm D
55-Gallon Drum Capacity 6
Base Capacity, lbs 6000
Base Capacity, kg 2721.6
Number of Doors 1
Door Type Fire-rated
Door Hinge Left
Door Height inch 80
Door Width inch 42
Door Height mm 2032
Door Width mm 1067
Sump Capacity - Gallons 116
Sump Capacity - liters 439
Sump Depth - inch 7.0
Sump Depth - mm 178
Storage Capacity cubic feet (Int Volume) 198
Storage Capacity cubic meters (Int Volume) 5.6
Net Weight, lbs 3437.0
Net Weight, kg 1559.0

Questions

Reviews

Download Specification PDF
