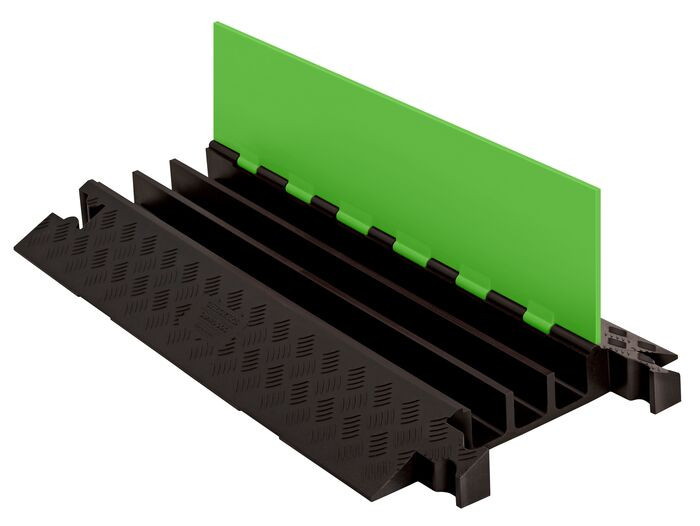

3-Channel Guard Dog® Cable Protectors for 2.25" Lines, SafeRay™ Hi-Viz Green Lid/Black Base - GD3X225-FLG/B
Only %1 left
Model No
GD3X225-FLG/B
Product Summary
- Protects cables and hoses up to 2.25" outside dia.
- SafeRay™ Technology in Hi-Viz green provides the best day and night visibility
- Dog-bone® connectors to extend to any desired length
- Reinforced hinged lid for easy cable placement
- All-weather polyurethane construction
- Patented 5-bar tread surface for maximum traction
- Modular interlocking design for easy setup
- Ideal for use in: amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications
- Personalize cable protectors with your logo or colors. Request a quote now.
WARNING: This product can expose you to chemicals including Lead, Carbon Black, Chromium, Nickel Compounds, and Sulfur Dioxide, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov..
Specifications Download Specification PDF
| Model No | GD3X225-FLG/B |
|---|---|
| Brand | Checkers Safety™ |
| Quantity Included | 1 |
Description
Whether you operate an amusement park, an industrial site, a construction firm or an entertainment venue, at some point you'll need a means of protecting electrical cables and hose lines. Built from all-weather high visibility green polyurethane, Guard Dog 3-Channel Cable Protectors model GD3X225-FLG/B can be used with cables up to 2.25" in outside diameter. Thanks to a patented 5-bar tread surface, you can ensure maximum traction for both vehicles and pedestrians, while a reinforced hinge lid ensures easy cable placement.
Personalize cable protectors with your logo or colors. Request a quote now.
The Hi-Viz green coloring was created specifically for situations requiring high visibility, using SafeRay™ Technology that provides the best day and night visibility.
Additionally, the modular, interlocking design ensures easy setup, while Dog Bone connectors allow you to extend your protector to whatever length you require.
Specifications
| Model No | GD3X225-FLG/B |
|---|---|
| Brand | Checkers Safety™ |
| Quantity Included | 1 |
| Load Capacity Per Axle | 28420 lbs |
| Load Capacity Per Tire | 14210 |
| Length | 38.88 |
| Width (Inches) | 19.75 |
| Height (Inches) | 3 |
| Max Cable Outside Diameter | 2.25 in. |
| Number of Channels | 3-Channels |
| Connector Type | Dog Bone Connector |
| Channel Width | 2.25 |

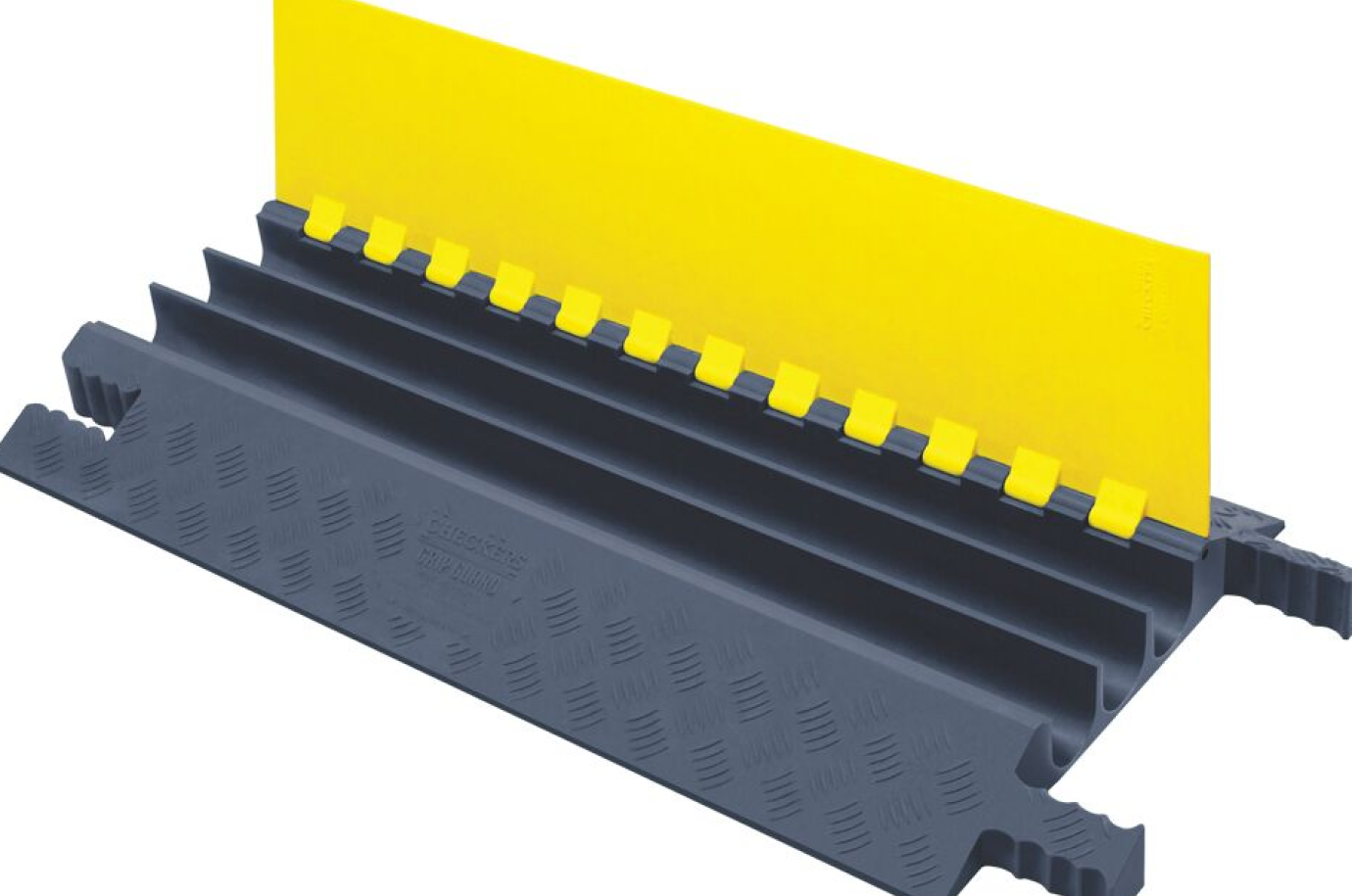

Guard Dog® Cable Protectors
Versatile, durable general-purpose cable protectors that are built to last
Checkers Guard Dog® Cable Protectors are the ultimate solution for general-purpose cable management and site safety. Ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications
Durable and cost-effective
Made in the USA from polyurethane, Guard Dog cable protectors are built to withstand up to 28,400 lbs/axle and last years, reducing the need for frequent replacements and lowering long-term costs.
Protects valuable equipment

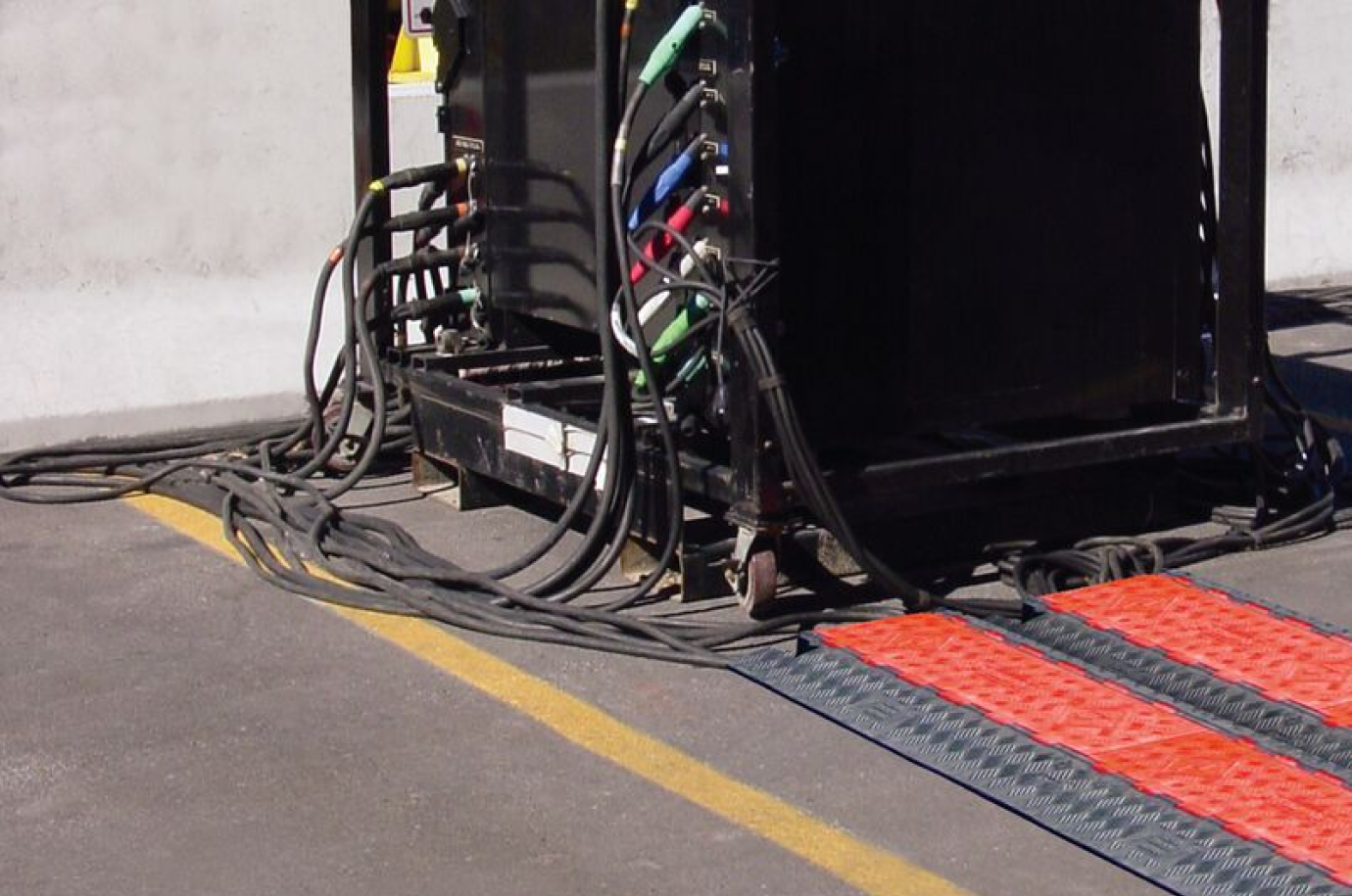

Exposed cables can cause trips, equipment damage, and costly operational shutdowns. Guard Dog protects wires, hoses, and cables under a rugged, hinged lid.
Fast and efficient setup
Patented tread surface provides superior traction and slip resistance, helping reduce injuries and liability on the job site. Up to 33% lighter than rubber without compromising strength and performance, they have built-in handles and an interlocking design that allow for quick deployment and easy transport..
Works with your existing fleet
Compatible with Dog Bone® connector models, allowing you to easily integrate, expand, or replace sections without interrupting your current layout.
High-visibility and customizable
Available in many high-visibility colors and can be customized with your company logo and preferred color for a branded appearance and to increased asset protection. Get a quote here.
Regulatory compliance
Meets state and federal guidelines such as OSHA and ADA guidelines for safe cable management in high-traffic areas.
Unlimited channels

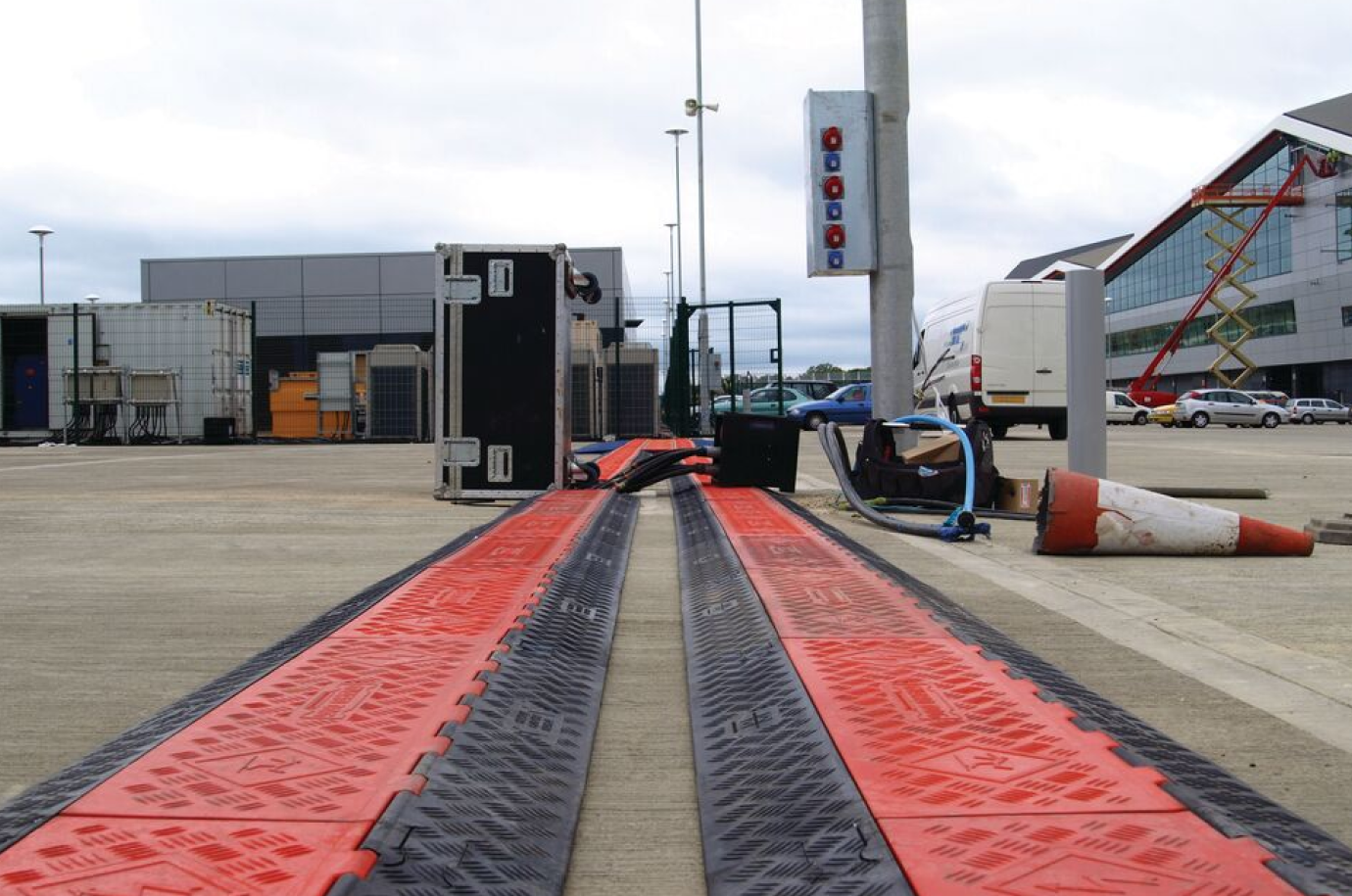

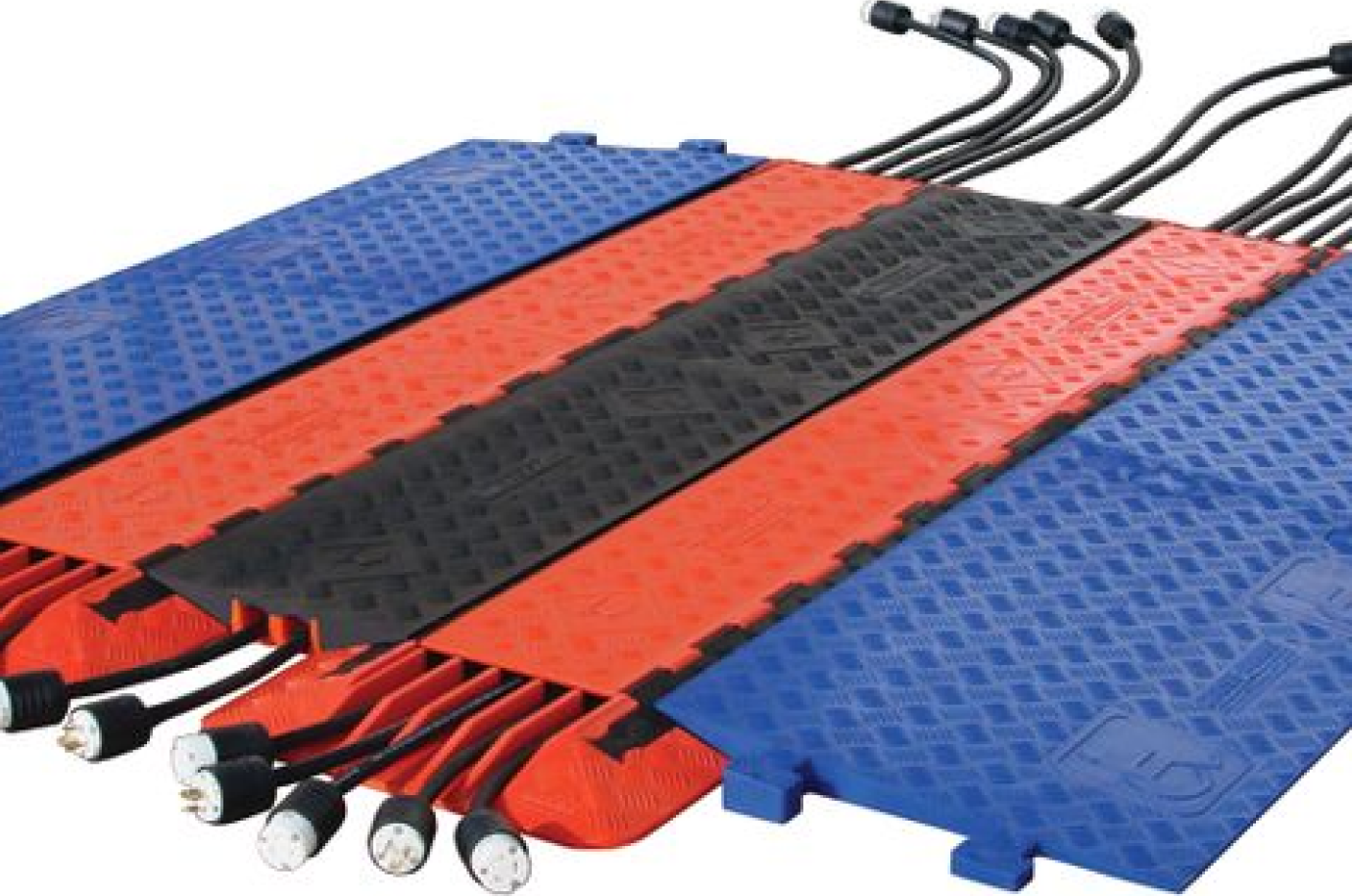

Cable bridges provide additional channels while creating a continuous, level, crossing surface for vehicle and pedestrian traffic. These modular accessories allow for the creation of any number of runs simultaneously by utilizing the space between multiple parallel cable protector runs.
Channel Size and
Maximum O.D.
5, 4, 3, 2, and 1-channel models available. Check your cable/hose outside diameter to ensure it will fit into your desired cable protector.
Height/Slope
Cable protector height varies Understand the clearance your vehicles require; low profile models, ADA compliant ramps and unique accessories are available if needed.

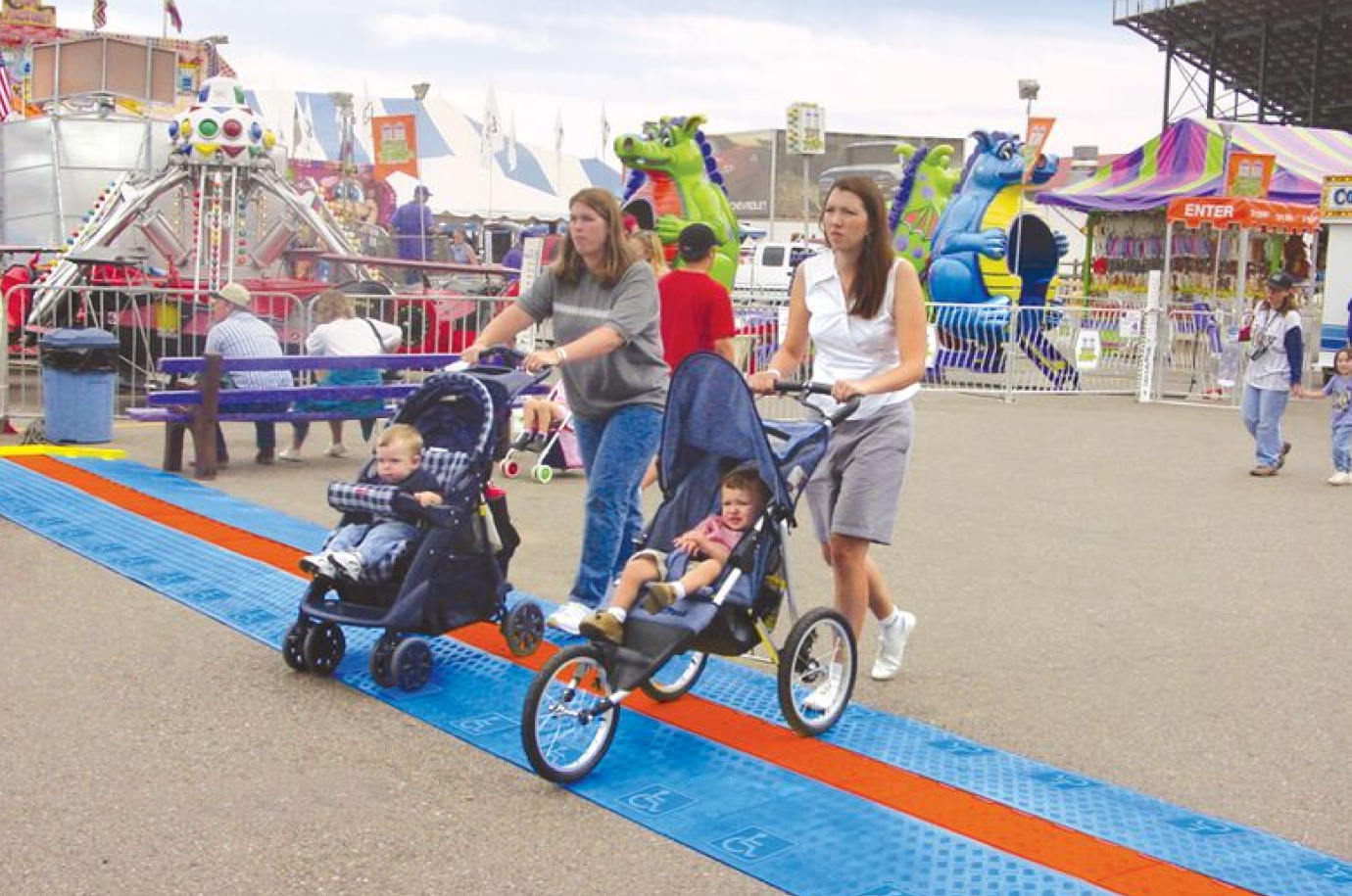

ADA/DDA
Compliant Accessories
Select cable protectors after multiple color options. Add the color code to the end of the product number.

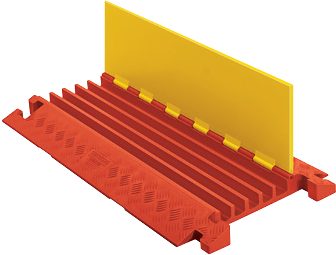

For example: CP5X125-Y/O is the complete model number for the cable protector pictured above

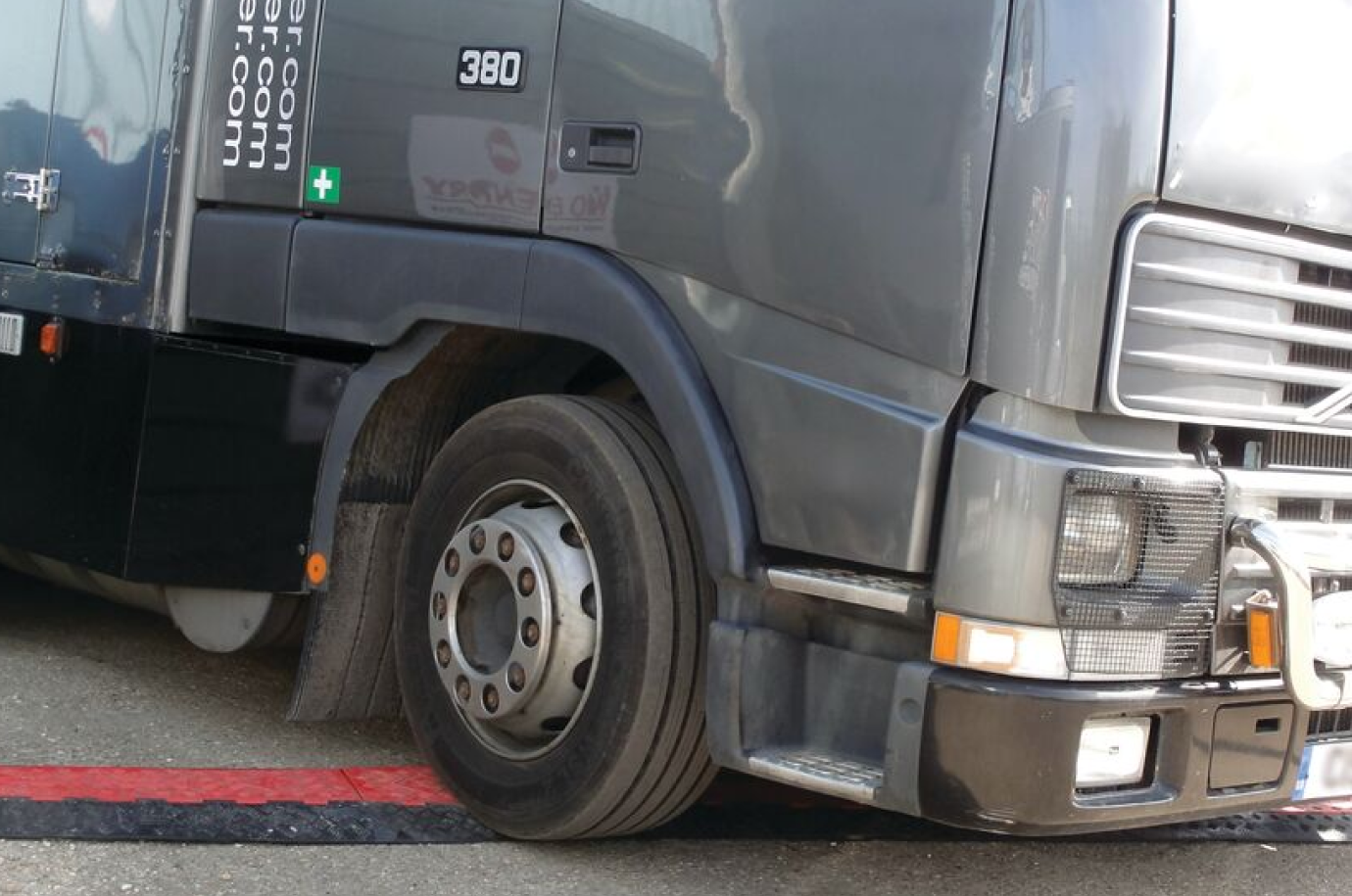

Load Capacity
Determine the required load capacity for your application. Know what type of vehicles and pedestrian traffic will be crossing over your cable protectors.
General Rule
As the number of channels on the protector increases, channel height increases (not applicable to low profile and drop-over models).
Connector Style
Make sure your product will be compatible with previous style cable protectors you may already own.
 T-Shaped |
 Dog Bone |
|
|
|
Hourglass
Gripper
L-Shaped
| Unit Color | Color Code | Icon |
| Yellow | Y |  |
| Orange | O |  |
| Black | B |  |
| Blue | BLU |  |
| Unit Color(s) | Color Code (Lid/Base) | Icon |
| Yellow/Orange | Y/O |  |
| Yellow/Black | Y/B |  |
| Yellow/Blue | Y/BLU |  |
| Yellow/Gray | Y/GRY |  |
| Orange/Yellow | O/Y |  |
| Orange/Black | O/B |  |
| Orange/Blue | O/BLU |  |
| Black/Yellow | B/Y |  |
| Black/Black | B/B |  |

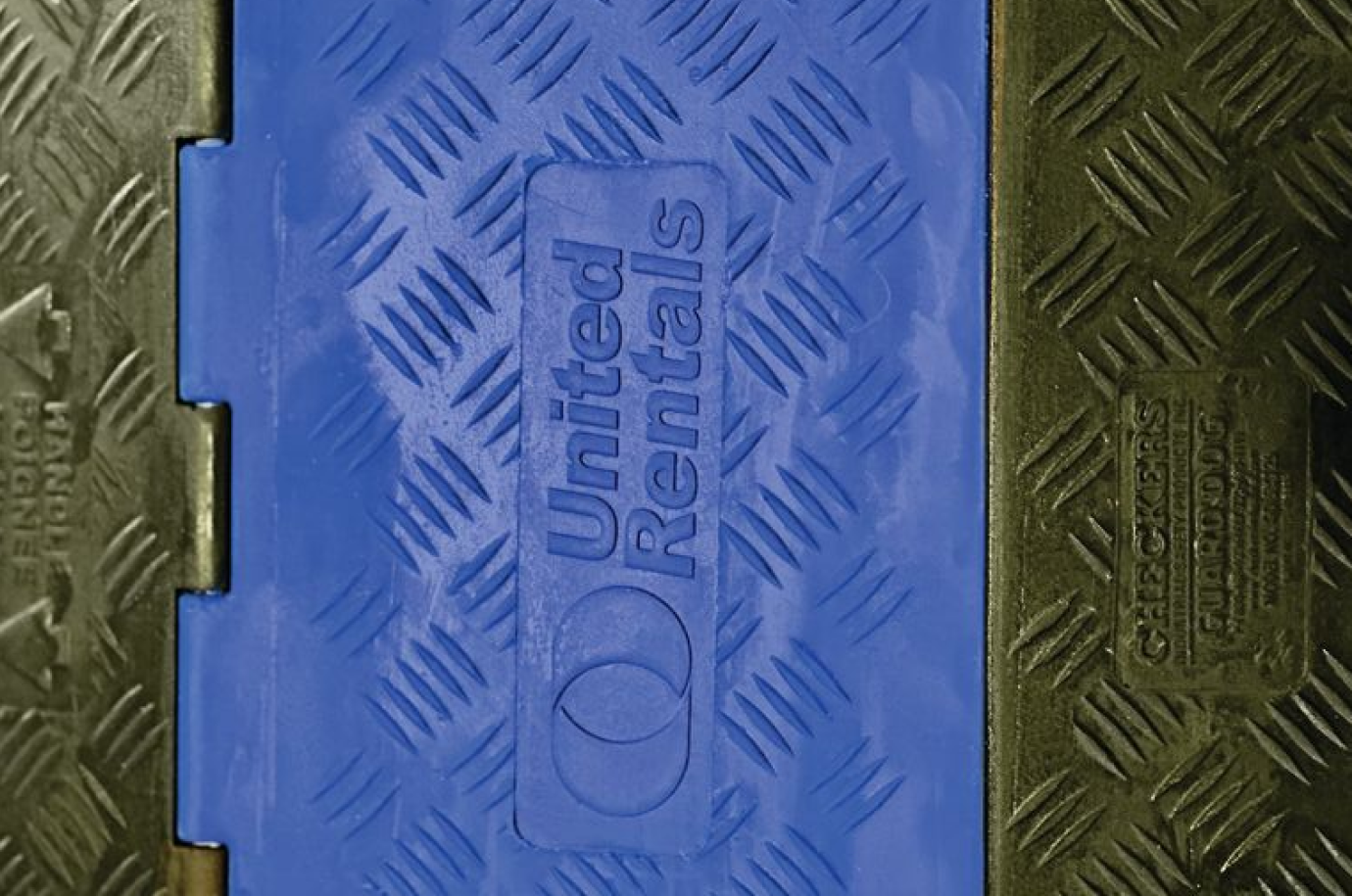

Customize Your Cable Protectors
Customize your cable protectors to meet your needs! We can create a custom color, mold your company’s logo into the lid, or both. Get a quote today!

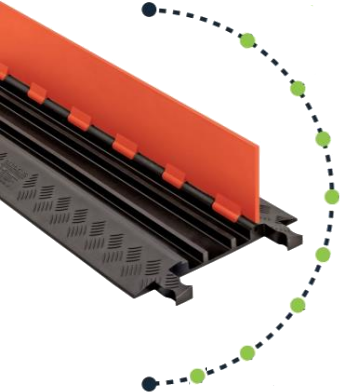

8 ADVANTAGES OF POLYURETHANE VS RUBBER
-
1 Up to 33% lighter, easier to handle and less costly to ship
-
2 Withstands repetitive impact and abuse over longer periods of time
-
3 Superior load bearing capacity and broader hardness range
-
4 UV Stable – use indoors or outside
-
5 Higher abrasion, cut and tear resistance
-
6 Better oil, chemical, fuel and lubricant resistance
-
7 No chemical odor like some imported products
-
8 Non conductive, making it ideal for power transmission projects
