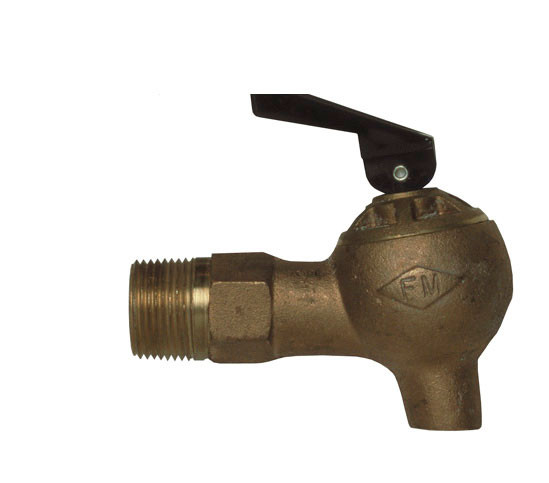

Brass Control Flow Lab Safety Faucet, 3/4-in NPT Bung

Model No
Warranty icon

Usually ships in 90 days Please contact customer service at
800-798-9250 for lead times.

Approvals FM Approval

Product Summary

  • Brass construction
  • Safe and easy dispensing from horizontal drums
  • FM Approved

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.


Simply place these faucets on your drum for leakproof dispensing of flammable liquids. Faucets feature an internal flame arrester that prevents flashback of fire into the drum for added safety. Brass construction with a polytetrafluoroethylene (PTFE) seal ensures excellent chemical resistance. Take the worry out of awkward spout position with adjustable models 08910 and 08916. They feature a coupling nut that provides rotation of the spout downward after the faucet is threaded in place. Use Model 08552 for viscous noncorrosive flammables such as adhesives, paint or heavy oils above 2000 SSU (about 30W oil).

Faucets are FM Approved.


More Information
Model No 08540
UPC 697841001916
International Model No. 08540
Material Specifications Brass
89mm H x 102mm W x 48mm D
FM Approval Yes
Wetted O-Rings PTFE
Internal Spout Thread 1/2 - 20 UNF
Flame Arrestor Material Brass
Cover Type / Closure Type Self Close
NPS/NPT inch 0.75
NPS/NPT mm 19
Net Weight, lbs 1.0
Net Weight, kg 0.5
