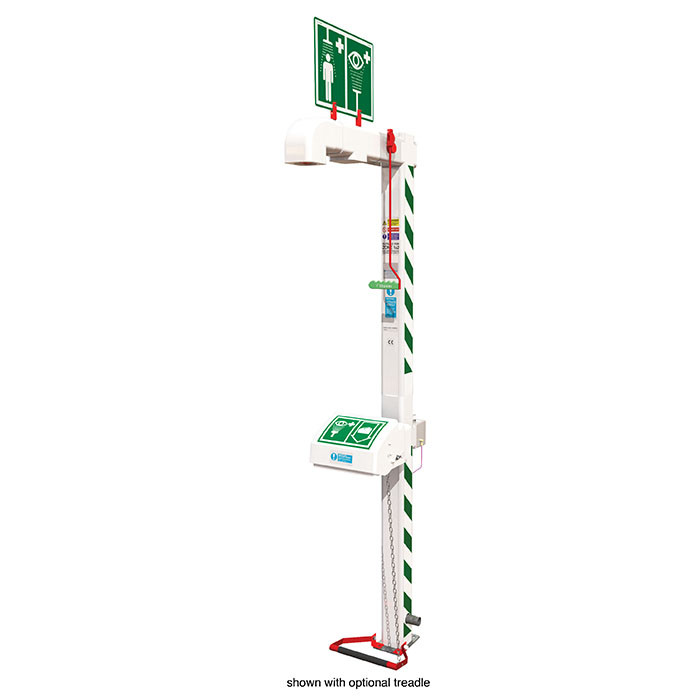

This freeze protected and insulated shower is intended for use where there is a possibility of the water inside of the shower freezing due to extreme cold climates. It features trace tape heating with polyethylene jacket and polyurethane foam insulation to improve frost protection and strength.
This floor mounted emergency combination shower features a specially designed, high-performance quarter-turn ball valve made of 316L stainless steel to endure the harshest environments and site conditions. Low operating torque to open valve offers reliable, easy on/off operation when emergencies occur. Valve includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure. Durable, coated stainless steel shower pull handle with nylon valve connection is easy to grip and activate for immediate water drenching.
The shower includes a removable, self-draining overhead nozzle designed for high flow rates that meet or exceed ANSI standards. Constructed from a durable nylon material, the nozzle offers optimal spray distribution for user protection. Made of tough, corrosion-resistant acrylic capped ABS, the covered eye/face wash incorporates an integral lid connected to the water valve for automatic operation—activate by simply pulling down the lid. Easy-to-reach flow regulator valve positioned on side of bowl adjusts to suit the severity of the accident.
Solid construction using stainless steel pipework for improved corrosion resistance. Includes an inspection record tag for recording service and test history. Some assembly may be required.
Electrical supply: 120V Single Phase, 60/50Hz
WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
|Net Weight, lbs||55.1|
|Net Weight, kg||25|
|Dimensions, Exterior||104.5" H x 14.7" W x 35.2" D|
|2654mm H x 375mm W x 375mm D|
|Height Without Sign, inches||91.6|
|Height Without Sign, mm||2327|
|Water Inlet Size NPT||1-1/4 in (M)|
|Minimum Operating Pressure||2 bar g, 29 PSI|
|Maximum Operating Pressure||6 bar g, 87 PSI|
|Water Flow Shower/Body Liters/min||76|
|Water Flow Shower/Body US Gal/min||20|
|Water Flow Eye/Face Liters/min||11.4|
|Water Flow Eye/Face US Gal/min||3|
|Material Specifications||Polyurethane foam insulation with a medium density polyethylene impact resistant outer casing, Nozzle: Nylon 6, Eye/facewash diffusers: Chrome plated brass with stainless steel mesh.|
|Operating Valve Material||Shower Valve: 316L Stainless, Eye Wash Valve: Chrome plated brass, Nozzle: Nylon 6 Red|
|Eye/Face Wash Bowl Material||Acrylic-Capped ABS Plastic|
|Pipework Material||Stainless Steel|
|Color/Finish||White with Green Stripes|
|Activation Method||Shower: Pull Handle, Eye/Face wash: Pull Lid Forward|
|Eye/Face Wash Bowl Interior Dimensions||9.5" W x 8" D|
|241mm W x 203mm D|
|Minimum Ambient Temperature, °F||-4|
|Minimum Ambient Temperature, °C||-20|
|Maximum Ambient Temperature, °F||95|
|Maximum Ambient Temperature, °C||35|
|Electrical Equipment Classification||Class 1 Division 2, Gas Groups C & D, Temperature Code T3|
|Electrical Supply||120 VAC, Single Phase, 60/50 Hz|
|Heating Type||Trace Tape Heated and Pre-Insulated|
|Heating Load, Watts||57|
