4 Vertical 20 to 33 Lb. LPG Cylinder Capacity, Gas Cylinder Cabinet Locker, Aluminum - 23009

Model No
23009
$1,259.00

Made in USA

Usually ships in 1-2 days Please contact customer service at
800-798-9250 for lead times.

Need a bulk or special order? Get a quote

Compliance OSHA ComplianceComplies with NFPA Code 30

Description:

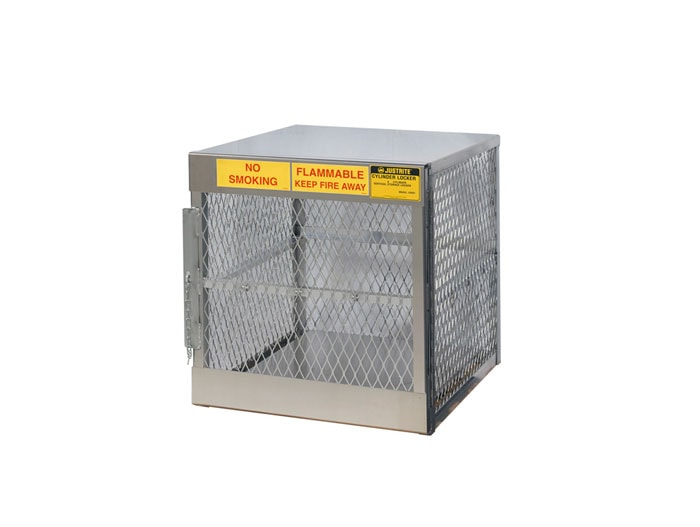

Justrite Cylinder Storage Cabinets for 4 Vertical 20 to 33 Lb. Cylinders (model 23009) provides upright storage of liquid petroleum gas (LPG) gas cylinders. It safely holds four 20 or 33 lb (9 or 15 kg) vertical LPG cylinders with exterior dimensions of 33.5 x 30 x 32 in (851 x 762 x 813 mm). One of three vertical LPG cylinder storage options and nine modular styles for comprehensive vertical and horizontal storage solutions, model 23009 includes 1 door.

Gas cylinder storage lockers from Justrite are ideal for those seeking a long-term, trusted, one-and-done investment in a proven product with superior design and manufacturing considerations. These cylinder lockers from Justrite are extremely durable and easy-to-use. Welded security lug-on front panel door accepts a padlock (not included) for extra protection from tampering. Heavy gauge 0.065 (1.65mm) 100% welded aluminum mesh and extruded (not formed) frame add rigidity. Ventilated designs prevent buildup of dangerous gases. Justrite cylinder lockers do not rust, corrode, or discolor.

All our gas cylinder storage cages have an exclusive solid aluminum roof panel that slants toward the back to shed water and ice. They feature raised floor panels for added support, to prevent cylinders from resting in puddles. Justrite lockers ship fully assembled for easier setup.

Our customers use model 23009 to remain in compliance with NFPA 58, CSA-B149.2 and OSHA 1910.253 regulations, and more. Each locker includes four warning labels for added precautions and safety, and are supplied with chains to secure each cylinder from falling over.

Justrite gas cylinder lockers are available across a range of horizontal, vertical and combination options to meet the precise spatial and compliance needs for a range of situations. Eleven modular styles provide an efficient, attractive solution to expand multi-cabinet storage.

Safe LPG Cylinder Storage

When you’re storing or transporting liquid petroleum gas (LPG), it’s crucial that your facility or vehicle comply with local codes, regional requirements, commercial regulations, and recommendations from fire departments.

Liquid petroleum gas (LPG) has a wide range of industrial and residential applications, from gas welding to thermo applied coatings, furnaces, and more. But this substance is also extremely flammable in storage and transit, with the potential to ignite in room temperature air.

Handling this substance requires extreme caution, with absolutely no room for error. The gas is odorless in its natural state, which means that a deadly accident can happen with no warning during storage or transport.

Product Summary:

  • Sized for large, 33 lb (8 gal) liquid petroleum gas (LPG) cylinders and can also accommodate smaller 20 lb (5 gal) use cases
  • Safely holds four 20 or 33 lb (9 or 15 kg) liquid petroleum gas cylinders with exterior dimensions of 33.5 x 30 x 32 in (851 x 762 x 813 mm)
  • Lightweight material (66% lighter than steel) reduces shipping and transport costs
  • Solid roof panel that slopes back to shed water and ice
  • Pre-drilled anchor holes at each corner that accept 1/2” or 12mm anchor bolts (not included)
  • In compliance with NFPA 58 LP Gas Code 8.4.2.1, 6.19.4.2; CSA International B149.2.5.1.7, B149.2 5.5.2.1(c); OSHA 1910.253

Specifications

More Information
Model No 23009
UPC 697841079083
International Model No. 230091
Pallet Quantity 1
Material Specifications Aluminum
CSA Approval Yes
OSHA Compliance Yes
Complies with NFPA Code 30 Yes
Storage Type Vertical
Cylinder Capacity 4
Number of Doors 1
Door Type Manual
Adjustable Shelves No
Dimensions, Exterior 33.5" H x 30" W x 32" D
851mm H x 762mm W x 813mm D
Net Weight, lbs 76.0
Net Weight, kg 34.5
