6- 16 Drum, 60" Double Door Upgrade, Fire-rated Lockers - 915702

Model No
915702
CALL TO ORDER 800-233-1480

Usually ships in 20 business days

Warranty icon

Made in USA

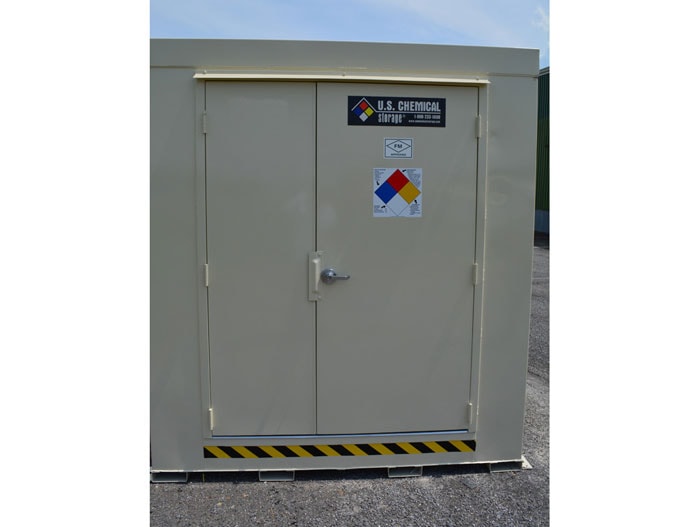

6- 16 Drum, 60" Double Door Upgrade, Fire-rated Lockers - 915702

6- 16 Drum, 60" Double Door Upgrade, Fire-rated Lockers - 915702

Product Summary


  • For locker applications requiring a larger door
  • Includes pallet and IBC storage

Specifications Download Specification PDF

Model No 915702
UPC 697841168336
International Model No. 915702

Description

Upgrade to a 60-inch (1524-mm) double door with UL Listed, keyed lockset and gain additional clearance for pallets, IBCs and larger items.
For use on 6- thru 16-drum, 2- and 4-hour fire-rated lockers, the 36-inch (914-mm) right side door serves as a personnel entrance, while the 24-inch (610-mm) left side door opens from the inside for drum loading.
• Large half of door includes door closer and does not stay open on its own.
• This accessory must be purchased in conjunction with a locker to ensure proper installation and/or to retain FM approval.

Specifications

More Information
Model No 915702
UPC 697841168336
International Model No. 915702
Color Bone
Material Specifications Steel
Dimensions, Exterior 80" H x 60" W
Dimensions, Exterior 176mm H x 132mm W
Dimensions, Interior 79" H x 59" W
Dimensions, Interior 174mm H x 130mm W
Number of Doors 2
Door Type Fire-rated
Door Hinge 24" Left Hinge, 36" Right Hinge
Door Height inch 80
Door Width inch 60
Door Height mm 176
Door Width mm 132
Net Weight, lbs 1.0
Net Weight, kg 1.0
