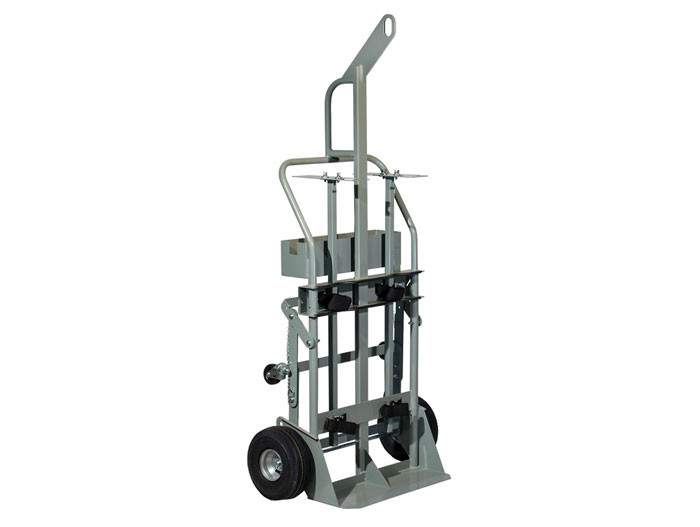

Double Cylinder Hand Truck With Hoist Ring, 10.5" Pneumatic Wheels, Rear Casters and Tool Tray - 35022

Model No
35022
$1,340.00

Usually ships in 5 days Please contact customer service at
800-798-9250 for lead times.

Warranty icon

Made in USA

Compliance OSHA Compliance

Product Summary

  • Locking posts and collar plates ensure total cylinder immobilization
  • Configured with 10.5-in (267-mm) steel hub pneumatic wheels with dual ball bearings for easier rolling—less effort required
  • Includes wide-set dual 3-in (76-mm) swivel caster assemblies for easier, stable transport—folds flat for storage
  • Rated at 600-lb (136-kg) weight capacity

Description

Move gas cylinders easily around a construction site, into locations with poor accessibility, or from floor to floor with these hoist-equipped hand trucks. Designed for a pair of cylinders (usually oxy-acetylene) common in welding applications, up to 13-in (330-mm) and 10-in (254-mm) in diameter, respectively.Fully welded construction using 1.25-in (32-mm) diameter round steel tube, these durable cylinder hand trucks provide optimum safety, strength, and longevity. Floor plate made of thick 11-gauge (3-mm) steel with safety fins prevents warping or breaking. Extensive structural framing with 0.375-in (10-mm) thick hoist plates make these units safe when lifted by hoist rigs. Triple grip handle design helps user control the high center of gravity by expanding available grip area for improved leverage and swing radius. The zero-lift height loading allows floor plate to lay flat, thereby eliminating the need to lift cylinder during loading and unloading. Caster carriage features heavy steel bars and nylon washers for smooth folding action and easy storage in tight spaces. Corrosion-resistant powder-coat finish throughout for long life and smooth handling.

Two heavy-duty 1.5- x 54-in (38-mm x 1372-mm) polypropylene support straps, lab tested to 1138-lb (516-kg), feature steel cinch buckles for secure attachment of cylinder—eliminate any cylinder rolling potential seen in chain-secured units. Exclusive bumper guard edging grips cylinder and minimizes damage to cylinder and hand truck. Triple grip handle design helps user control the high center of gravity by expanding available grip area for improved leverage and swing radius. Includes a tool tray for torch and equipment storage.

Developed for the US Navy for use on submarines.

Helps comply with OSHA, NFP1, NFPA 55, and CGA.

Specifications

More Information
Model No 35022
UPC 697841209664
Cylinder Capacity 2
Minimum Cylinder Diam (in) 5
Cylinder Capacity with Max Cylinder Dia (1) 10 inch and (1) 13 inch
Hoist Ring Equipped Yes
Locking Post Equipped Yes
Tool Box/Tray Tool Tray
Rear Casters Yes
Rear Casters (inch) 3
Rear Casters (mm) 76
Main Wheel Type Pneumatic
Main Wheel Size (inch) 10.5
Main Wheel Size (mm) 267
Weight Capacity (lb) 600
Weight Capacity (kg) 272
Strap Style Poly Cinch Strap with Steel Buckle and Chain
Straps Per Cylinder 2
Material Specifications Steel
Complies with NFPA 1 Fire-Code Yes
NFPA 55 Yes
OSHA Compliance Yes
CGA Yes
Net Weight, lbs 120
Net Weight, kg 54
Net Dimensions (W x D x H) 35 x 22 x 69 inches
889 x 559 x 1753 mm
