This freeze protected and insulated drench shower is intended for use where there is a possibility of the water inside of the shower freezing due to extreme cold climates. It features trace tape heating with polyethylene jacket and polyurethane foam insulation to improve frost protection and strength.

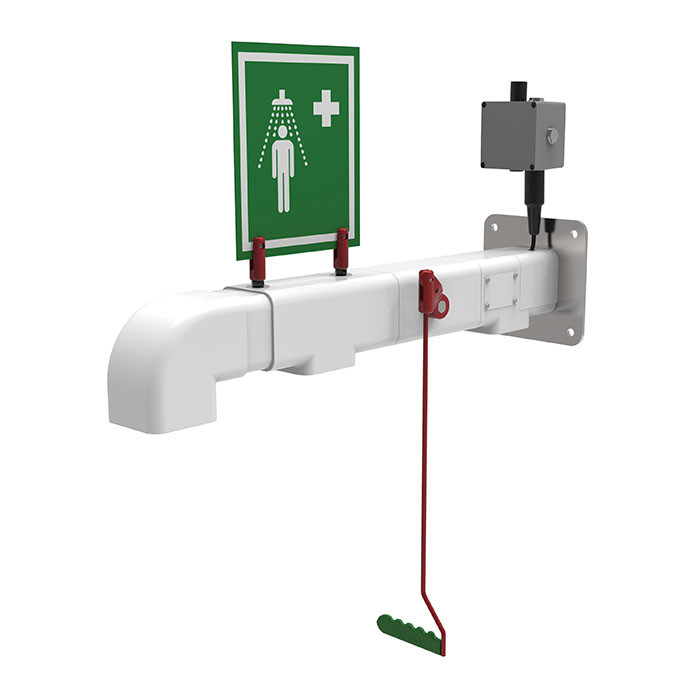

Ideal for use where space is at a premium, this wall mounted emergency drench shower features a specially designed, high-performance quarter-turn ball valve made of 316L stainless steel to endure the harshest environments and site conditions. Low operating torque to open valve offers reliable, easy on/off operation when emergencies occur. Valve includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure. Durable, coated stainless steel shower pull handle with nylon valve connection is easy to grip and activate for immediate water drenching.
The shower includes a removable, self-draining overhead nozzle designed for high flow rates that meet or exceed ANSI standards. Made of durable nylon material, the nozzle offers optimal spray distribution for user protection and water conservation.
Solid construction using stainless steel pipework for added corrosion resistance. Includes an inspection record tag for recording service and test history. Some assembly may be required.
Electrical supply: 240V Single Phase, 60/50Hz
|Net Weight, lbs||26.5|
|Net Weight, kg||12|
|Dimensions, Exterior||38.1" H x 10" W x 36.4" D|
|969mm H x 254mm W x 254mm D|
|Height Without Sign, inches||35.4|
|Height Without Sign, mm||900|
|Water Inlet Size NPT||1 in (F)|
|Minimum Operating Pressure||1.5 bar g, 22 PSI|
|Maximum Operating Pressure||6 bar g, 87 PSI|
|Water Flow Shower/Body Liters/min||76|
|Water Flow Shower/Body US Gal/min||20|
|Material Specifications||Polyurethane foam insulation with a medium density polyethylene impact resistant outer casing, Nozzle: Nylon 6|
|Operating Valve Material||316L Stainless|
|Pipework Material||Stainless Steel|
|Color/Finish||White with Green Stripes|
|Activation Method||Pull Handle|
|Minimum Ambient Temperature, °F||-4|
|Minimum Ambient Temperature, °C||-20|
|Maximum Ambient Temperature, °F||95|
|Maximum Ambient Temperature, °C||35|
|Electrical Equipment Classification||Class 1 Division 2, Gas Groups C & D, Temperature Code T3|
|Electrical Supply||240 VAC, Single Phase, 60/50 Hz|
|Heating Type||Trace Tape Heated and Pre-Insulated|
|Heating Load, Watts||12|
