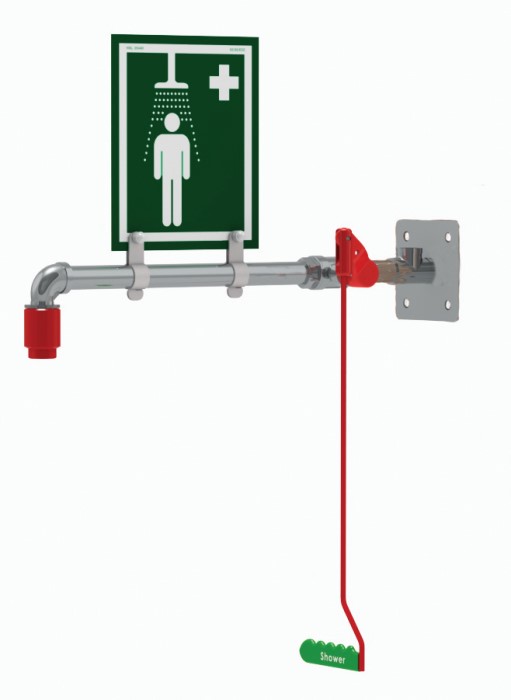

Wall Mount, Hughes Drench Shower, Stainless Steel Pipe - 23GSH

Model No
23GSH
$481.00
In Stock

Usually ships in 1 - 2 days Please contact customer service at
800-798-9250 for lead times.

Warranty icon

Product Summary

Hughes Logo

  • Removable, self-draining nozzle constructed from durable nylon
  • High-performance quarter-turn ball valves made of 316L stainless steel endure the harshest environments and site conditions
  • Includes a universal safety shower sign for enhanced visibility
  • Meets ANSI Z358.1 2014 and EN 15154 standards, supports OSHA requirements

Description

Ideal in factories, schools, laboratories or other indoor environments where space is at a premium, use this wall mounted shower for treatment of full-body chemical exposure. Suitable for use in all applications that do not require an eye wash and are not subject to the possibility of freezing or overheating.

The system features a specially designed valve that includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure. Low operating torque offers reliable, easy on/off operation. Durable, coated stainless steel pull handle with nylon valve connection is easy to grip and activate for immediate water drenching.

Designed for high flow rates that meet or exceed ANSI standards, the nozzle offers optimal spray distribution for user protection. Unlike shower rose designs, this compact nozzle reduces the potential for insect nesting and eliminates high replacement costs associated with cracked or dented plastic spray heads.

Solid construction using stainless steel pipework for added corrosion resistance. Includes an inspection record tag for recording service and test history. Some assembly may be required.

Specifications

More Information
Model No 23GSH
UPC 805042000205
Net Weight, lbs 11
Net Weight, kg 5
Dimensions, Exterior 35.8" H x 8.5" W x 28.7" D
909mm H x 215mm W x 215mm D
Height Without Sign, inches 25.3
Height Without Sign, mm 642
UL Classified to ANSI Z358.1-2014 Yes
Water Inlet Size NPT 1 in (F)
Minimum Operating Pressure 1.5 bar g, 22 PSI
Maximum Operating Pressure 6 bar g, 87 PSI
Water Flow Shower/Body Liters/min 76
Water Flow Shower/Body US Gal/min 20
Material Specifications Nozzle: Nylon 6
Operating Valve Material 316L Stainless
Mounting Type Wall
Pipework Material Stainless Steel
Activation Method Pull Handle
Minimum Ambient Temperature, °F 41
Minimum Ambient Temperature, °C 5
Maximum Ambient Temperature, °F 95
Maximum Ambient Temperature, °C 35
