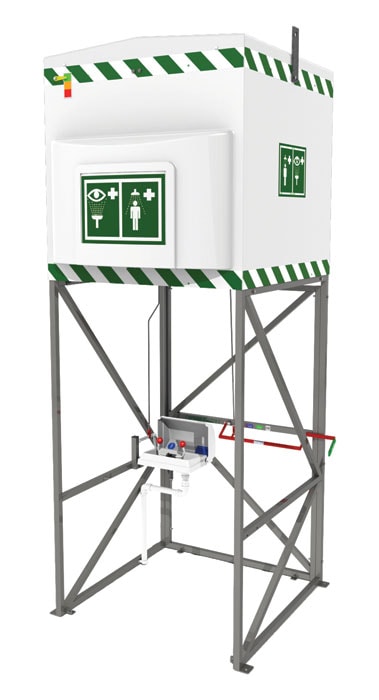

317 Gallon, Hughes Emergency Tank Shower with Eye/Face Wash, Galvanized Steel Frame, 110V GP - QS1200

Model No
QS1200
$30,259.00

Usually ships in 10 days Please contact customer service at
800-798-9250 for lead times.

Need a bulk or special order? Get a quote

Description:

Emergency tank showers are essential to providing safe working conditions where insufficient water pressure exists or when it is impractical to use a plumbed safety shower. The 317 gallon (1200 liter) model provides tepid water even when there is no mains water supply. An integral immersion heater, 110V general purpose rated, controlled by a dual safety thermostat, maintains the water in the insulated tank at a constant tepid temperature. In an emergency, the shower activates quickly with a simple push of the panic bar. Intended for use in applications within a temperature range of 14°F(-10°C) to 104°(40°C). Assembly required.

Electrical supply: 110V Single Phase, 60/50Hz

Note: This tank shower is ANSI compliant for the 15 minute time requirement only when connected to a plumbed water source.

Product Summary:

Hughes Logo

  • Rectangular hollow section galvanized steel frames are earthquake-proof and conform to the California Building Code
  • Internally mounted, covered eye/face wash unit protects against dust and debris
  • Low-pressure shower rose delivers large quantities of water in an even pattern that is non-injurious to the user
  • External water level indicator provides visibility to tank levels
  • Ready for quick delivery—packed for economical shipment and assembly on-site

WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specifications

More Information
Model No QS1200
Color Multicolor
UPC 805042000830
Net Weight, lbs 750
Net Weight, kg 340
Filled Weight, lbs 2644
Filled Weight, kg 1198
Dimensions, Exterior 139" H x 67" W x 61" D
3531mm H x 1702mm W x 1702mm D
Water Inlet Size NPT 3/4 in (F) and
Minimum Operating Pressure 0.5 bar g, 8 PSI
Maximum Operating Pressure 10 bar g, 145 PSI
Water Flow Shower/Body Liters/min 76
Water Flow Shower/Body US Gal/min 20
Water Flow Eye/Face Liters/min 11.4
Water Flow Eye/Face US Gal/min 3
Operating Valve Material Shower Valve: UPVC, Eyewash: Stainless Steel
Eye/Face Wash Bowl Material GRP Composite
Mounting Type Floor
Pipework Material UPVC and Stainless Steel
Activation Method Shower: Push Bar, Eye/Face wash: Lift Lid Up
Eye/Face Wash Bowl Interior Dimensions 14" W x 7.5" D
356mm W x 191mm D
Rose Diameter, inches 10.5
Rose Diameter, mm 264
Minimum Ambient Temperature, °F 14
Minimum Ambient Temperature, °C -10
Maximum Ambient Temperature, °F 104
Maximum Ambient Temperature, °C 40
Electrical Equipment Classification General Purpose
Electrical Supply 110 VAC, Single Phase, 60/50 Hz
Heating Type Immersion Heater
Heating Load, Watts 1700
Operation Duration, min 13
