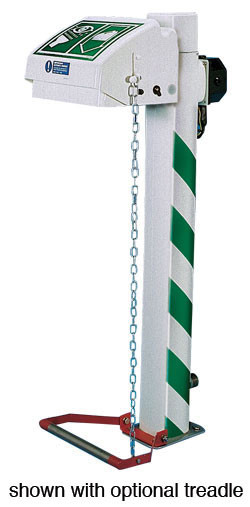

Pedestal Mount, Closed ABS Bowl, Hughes Eye/Face Wash, Freeze Protected, Galvanized Pipe, 120V C1D2 - H45GP-1H

Model No
H45GP-1H
$2,600.00

Usually ships in 15 days Please contact customer service at
800-798-9250 for lead times.

Product Summary

Hughes Logo

  • For cold climates with a minimum ambient operating temperature of -4°F (-20°C) or above
  • Covered acrylic-capped ABS eye/face wash protects the bowl and eyewash diffusers from dust and debris
  • Diffusers provide a gentle flow of aerated water and prevent further injury to the eyes
  • Includes a separate universal eyewash sign for enhanced visibility
  • Meets ANSI and EN 15154 standards and supports OSHA requirements

WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Description

This freeze protected and insulated eye/face wash is intended for use where there is a possibility of the water freezing due to extreme cold climates.

Pedestal-mounted eye/face wash unit, designed at ANSI-compliant height, is generally located in open areas away from walls. These freeze protected models are trace-tape heated and insulated, suitable for use in both Class 1 Division 2 hazardous areas, as well as non-hazardous areas. Made of durable, corrosion-resistant acrylic capped ABS, the eye/face wash incorporates an integral lid connected to the water valve for automatic operation—activate by simply pulling down the lid. Easy-to-reach flow regulator valve positioned on side of bowl adjusts to suit the severity of the accident.

Solid construction using galvanized mild steel pipework. Add optional foot treadle for a secondary means of activation. Some assembly may be required.

Electrical supply: 120V Single Phase, 60/50Hz

Specifications

More Information
Model No H45GP-1H
Color white
UPC 805042000489
Net Weight, lbs 30.9
Net Weight, kg 14
Dimensions, Exterior 48.1" H x 14.8" W x 24.9" D
1223mm H x 375mm W x 375mm D
Water Inlet Size NPT 1-1/4 in (M)
Minimum Operating Pressure 2 bar g, 29 PSI
Maximum Operating Pressure 6 bar g, 87 PSI
Water Flow Eye/Face Liters/min 11.4
Water Flow Eye/Face US Gal/min 3
Operating Valve Material Chrome plated brass
Eye/Face Wash Bowl Material Acrylic-Capped ABS Plastic
Mounting Type Pedestal
Pipework Material Galvanized Steel
Activation Method Pull Down on Lid
Minimum Ambient Temperature, °F -4
Minimum Ambient Temperature, °C -20
Maximum Ambient Temperature, °F 95
Maximum Ambient Temperature, °C 35
Electrical Equipment Classification Class 1 Division 2, Gas Groups C & D, Temperature Code T3
Electrical Supply 120 VAC, Single Phase, 60/50 Hz
Heating Type Trace Tape Heated and Pre-Insulated
Heating Load, Watts 36
