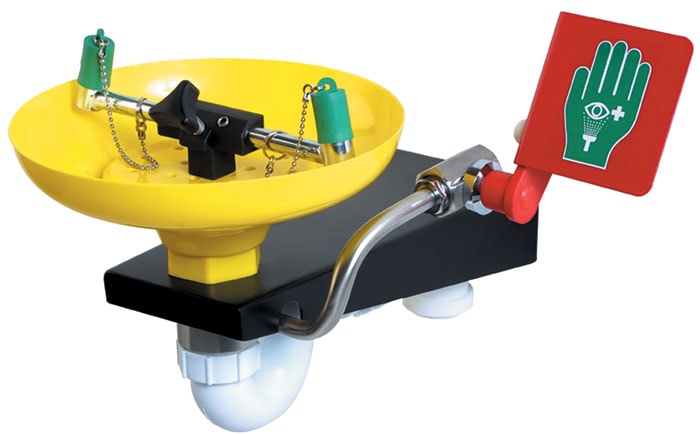

Wall Mount, Open ABS Bowl, Hughes Eye/Face Wash - 75GEW

Model No
75GEW
$497.00
In Stock

Usually ships in 1 - 2 days Please contact customer service at
800-798-9250 for lead times.

Warranty icon

Product Summary

Hughes Logo

  • Twin spray nozzles protected by dust covers that pop-off when eye wash is activated
  • Diffusers provide a gentle flow of aerated water and prevent further injury to the eyes
  • High-performance 316L SS quarter-turn ball valves endure the harshest environments and site conditions
  • Includes a separate universal eyewash sign for enhanced visibility,
  • Meets ANSI and EN 15154 standards and supports OSHA requirements

WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Description

This wall-mounted eye/face wash with open ABS plastic bowl is suitable for use in all applications not subject to the possibility of freezing or overheating. The system features a specially designed valve that includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure. Low operating torque offers reliable, easy on/off operation. Includes an inspection record tag for recording service and test history.

Specifications

More Information
Model No 75GEW
UPC 805042000014
Net Weight, lbs 8.8
Net Weight, kg 4
Dimensions, Exterior 11.6" H x 16.9" W x 15.7" D
295mm H x 429mm W x 429mm D
UL Classified to ANSI Z358.1-2014 Yes
Water Inlet Size NPT 1/2 in (F)
Minimum Operating Pressure 2 bar g, 29 PSI
Maximum Operating Pressure 6 bar g, 87 PSI
Water Flow Eye/Face Liters/min 11.4
Water Flow Eye/Face US Gal/min 3
Material Specifications Eye/facewash diffusers: Chrome plated brass with stainless steel mesh.
Operating Valve Material 316L Stainless
Eye/Face Wash Bowl Material Yellow ABS Plastic
Mounting Type Wall
Activation Method Push Plate
Eye/Face Wash Bowl Interior Dimensions 9.75" W x 9.75" D
248mm W x 248mm D
Minimum Ambient Temperature, °F 41
Minimum Ambient Temperature, °C 5
Maximum Ambient Temperature, °F 95
Maximum Ambient Temperature, °C 35

Questions

Reviews

Download Specification PDF
