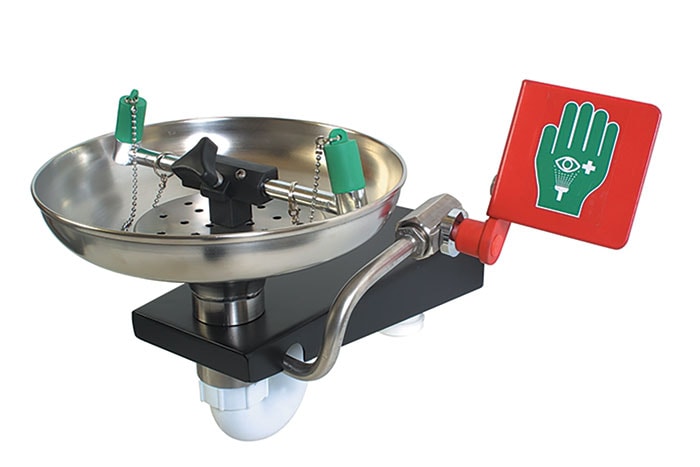

Hughes Eye/Face Wash, Wall Mount, Open Stainless Steel Bowl
Hughes Eye/Face Wash, Wall Mount, Open Stainless Steel Bowl
This wall-mounted eye/face wash with open stainless steel bowl is suitable for use in all applications not subject to the possibility of freezing or overheating. The system features a specially designed valve that includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure. Low operating torque offers reliable, easy on/off operation. Includes an inspection record tag for recording service and test history.
This wall-mounted eye/face wash with open stainless steel bowl is suitable for use in all applications not subject to the possibility of freezing or overheating. The system features a specially designed valve that includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure. Low operating torque offers reliable, easy on/off operation. Includes an inspection record tag for recording service and test history.
| Model No. | 85GEW |
|---|---|
| Net Weight, lbs | 8.8 |
| Net Weight, kg | 4 |
| Dimensions, Exterior | 11.6" H x 16.9" W x 15.7" D |
| 295mm H x 429mm W x 429mm D | |
| ANSI Compliance | Y |
| UL Classified to ANSI Z358.1-2014 | Yes |
| Water Inlet Size NPT | 1/2 in (F) |
| Minimum Operating Pressure | 2 bar g, 29 PSI |
| Maximum Operating Pressure | 6 bar g, 87 PSI |
| Water Flow Eye/Face Liters/min | 11.4 |
| Water Flow Eye/Face US Gal/min | 3 |
| Material Specifications | Eye/facewash diffusers: Chrome plated brass with stainless steel mesh. |
| Operating Valve Material | 316L Stainless |
| Eye/Face Wash Bowl Material | Stainless Steel |
| Mounting Type | Wall |
| Activation Method | Push Plate |
| Eye/Face Wash Bowl Interior Dimensions | 10.25" W x 10.25" D |
| 260mm W x 260mm D | |
| Minimum Ambient Temperature, °F | 41 |
| Minimum Ambient Temperature, °C | 5 |
| Maximum Ambient Temperature, °F | 95 |
| Maximum Ambient Temperature, °C | 35 |
Write Your Own Review
Key Benefits
- Twin spray nozzles protected by dust covers that pop-off when eye wash is activated
- Diffusers provide a gentle flow of aerated water and prevent further injury to the eyes
- High-performance 316L SS quarter-turn ball valves endure the harshest environments and site conditions
- Includes a separate universal eyewash sign for enhanced visibility,
- Meets ANSI and EN 15154 standards and supports OSHA requirements
| Model No. | 85GEW |
|---|---|
| Net Weight, lbs | 8.8 |
| Net Weight, kg | 4 |
| Dimensions, Exterior | 11.6" H x 16.9" W x 15.7" D |
| 295mm H x 429mm W x 429mm D | |
| ANSI Compliance | Y |
| UL Classified to ANSI Z358.1-2014 | Yes |
| Water Inlet Size NPT | 1/2 in (F) |
| Minimum Operating Pressure | 2 bar g, 29 PSI |
| Maximum Operating Pressure | 6 bar g, 87 PSI |
| Water Flow Eye/Face Liters/min | 11.4 |
| Water Flow Eye/Face US Gal/min | 3 |
| Material Specifications | Eye/facewash diffusers: Chrome plated brass with stainless steel mesh. |
| Operating Valve Material | 316L Stainless |
| Eye/Face Wash Bowl Material | Stainless Steel |
| Mounting Type | Wall |
| Activation Method | Push Plate |
| Eye/Face Wash Bowl Interior Dimensions | 10.25" W x 10.25" D |
| 260mm W x 260mm D | |
| Minimum Ambient Temperature, °F | 41 |
| Minimum Ambient Temperature, °C | 5 |
| Maximum Ambient Temperature, °F | 95 |
| Maximum Ambient Temperature, °C | 35 |
