Fill Drum Vent with 6 inch Flame Arrester

Model No
08204
$141.00

Usually ships in 3 business days

Warranty icon

Made in USA

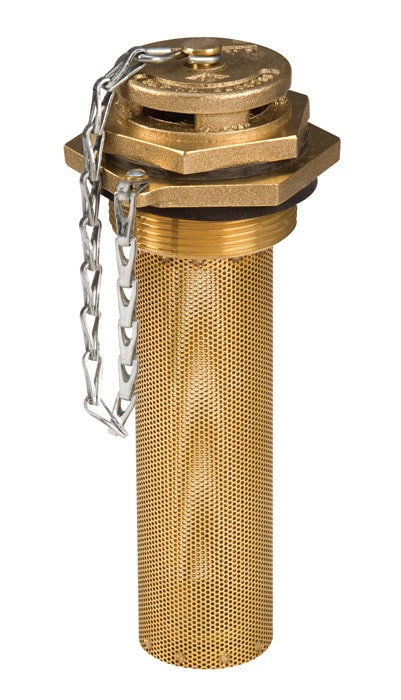

Fill Drum Vent with 6 inch Flame Arrester

Fill Drum Vent with 6 inch Flame Arrester

$141.00

Product Summary


  • Fill vent with 6" flame arrester
  • FM Approved

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specifications Download Specification PDF

Model No 08204
UPC 697841001190
International Model No. 08204

Description

Safety fill vents and funnels fit the 2-in (51-mm) bung on a vertically-stored drum. The brass vent provides automatic pressure and vacuum relief, and includes a brass cap with safety chain tethered to the vent to prevent misplacement or loss. Remove cap during drum filling operations. Model no. 08211 includes a 9-in(229-mm) wide polyethylene funnel to facilitate solvent waste disposal and reduce spillage. Keep vent capped in closed position after filling operations to prevent flammable vapor from escaping. Six-inch (152-mm) flame arrester safely dissipates heat and prevents flashback from external ignition sources.

Specifications

More Information
Model No 08204
UPC 697841001190
International Model No. 08204
Material Specifications Brass
FM Approval Yes
Flame Arrestor, inch 6
Flame Arrestor, mm 152
NPS/NPT inch 2
NPS/NPT mm 51
Net Weight, lbs 2.0
Net Weight, kg 0.9
Approvals FM Approval
