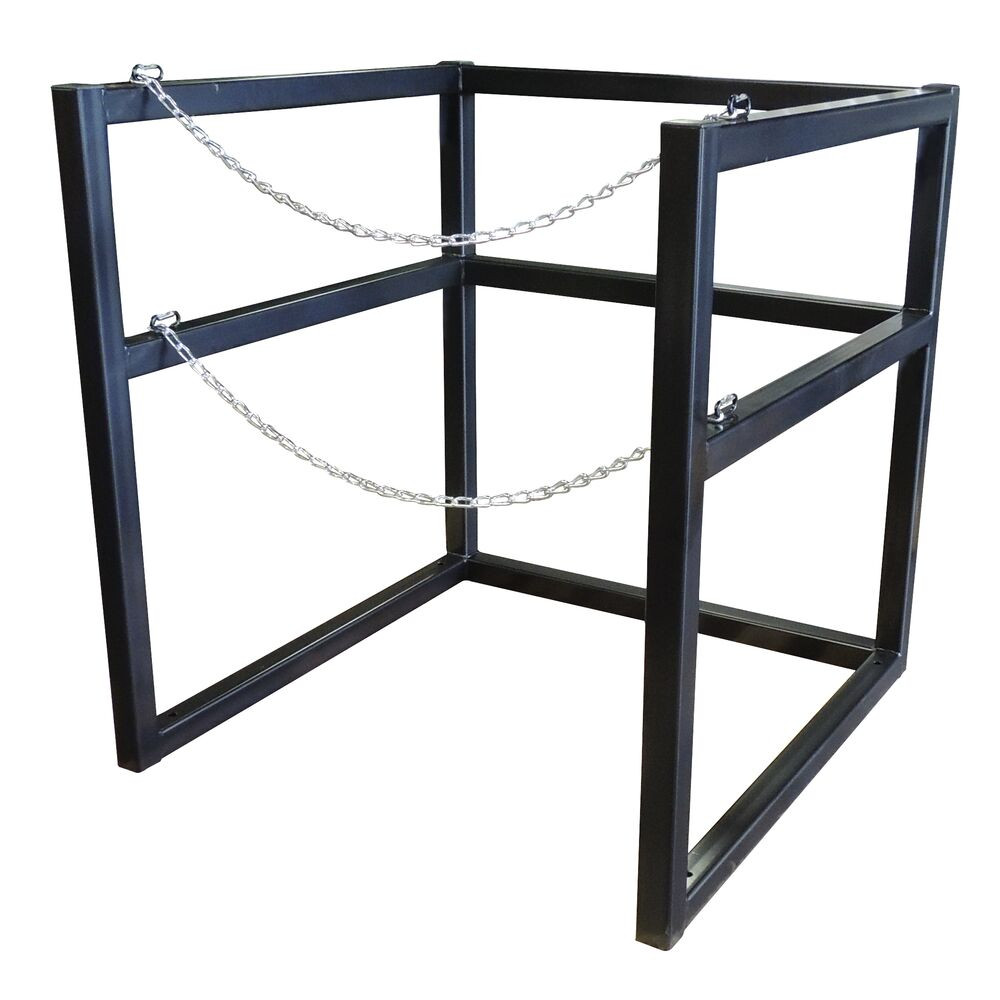

1 Wide by 1 Deep, Cryogenic Gas Cylinder Storage Rack, 1 Cylinder Capacity, 33" Max Diameter, Steel - 35184

Model No
35184
$1,023.00

Made in USA

Usually ships in 10 days

Need a bulk or special order? Get a quote

Compliance OSHA Compliance

Description:

Recommended for indoor or outdoor cryogenic cylinder storage, barricade racks surround cylinders with 2-in (51-mm) square steel structural tubing, continuously seam welded at all junction points and sealed with exterior grade powder-coat paint for long lasting strength, durability and dependability. Tops ground smooth and capped with high-density polyethylene (HDPE) caps to prevent corrosion and injuries. Features two levels of welded steel chains for each cylinder and clasps to connect the chains to the rack, ensuring a snug fit. Pre-drilled 0.531-in (14-mm) diameter floor mounting holes included on lower tube structure. For seismic installations, add Model 35350 S4-rated anchor bolts (not included).

Helps comply with OSHA, NFP1, NFPA 55, and CGA.

Product Summary:

  • Secure cryogenic cylinders up to 33-in (838-mm) in diameter
  • Meets USGS high-hazard seismic zone requirements when properly mounted

Specifications

More Information
Model No 35184
UPC Code 697841210653
Cylinder Capacity 1
Minimum Cylinder Diam (in) 28
Cylinder Capacity with Max Cylinder Dia (1) 33 inch
Mount Type Floor
Mount Holes 4
Mount Hole Size (inch) 0.531
Strap Style Chain
Straps Per Cylinder 2
Material Specifications Steel
Complies with NFPA 1 Fire-Code Yes
NFPA 55 Yes
OSHA Compliance Yes
CGA Yes
High Hazard Seismic Zone Yes
Net Weight, lbs 240
Net Weight, kg 109
Net Dimensions (W x D x H) 38 x 36 x 40 inches
965 x 914 x 1016 mm
