2 Wide by 1 Deep, Cryogenic Gas Cylinder Storage Rack, 2 Cylinders Capacity, 22" Max Diameter, Steel - 35188

Model No

Usually ships in 10 days Please contact customer service at
800-798-9250 for lead times.

Warranty icon

Made in USA

Compliance OSHA Compliance

Product Summary

  • Secure cryogenic cylinders up to 22-in (559-mm) in diameter
  • Meets USGS high-hazard seismic zone requirements when properly mounted

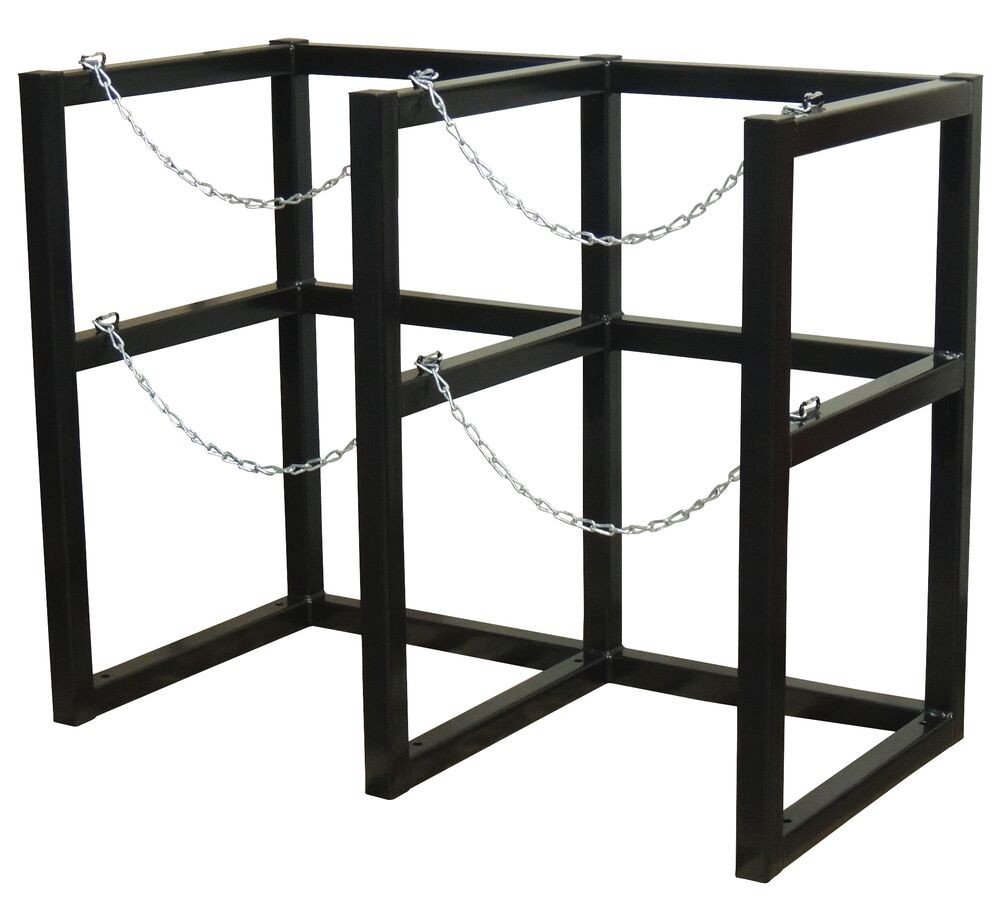

Recommended for indoor or outdoor cryogenic cylinder storage, barricade racks surround cylinders with 2-in (51-mm) square steel structural tubing, continuously seam welded at all junction points and sealed with exterior grade powder-coat paint for long lasting strength, durability and dependability. Tops ground smooth and capped with high-density polyethylene (HDPE) caps to prevent corrosion and injuries. Features two levels of welded steel chains for each cylinder and clasps to connect the chains to the rack, ensuring a snug fit. Pre-drilled 0.531-in (14-mm) diameter floor mounting holes included on lower tube structure. For seismic installations, add Model 35350 S4-rated anchor bolts (not included).

Helps comply with OSHA, NFP1, NFPA 55, and CGA.


More Information
Model No 35188
UPC 697841210660
Cylinder Capacity 2
Minimum Cylinder Diam (in) 17
Cylinder Capacity with Max Cylinder Dia (1) 22 inch
Mount Type Floor
Mount Holes 6
Mount Hole Size (inch) 0.531
Strap Style Chain
Straps Per Cylinder 2
Material Specifications Steel
Complies with NFPA 1 Fire-Code Yes
NFPA 55 Yes
OSHA Compliance Yes
High Hazard Seismic Zone Yes
Net Weight, lbs 166
Net Weight, kg 75
Net Dimensions (W x D x H) 54 x 26 x 40 inches
1372 x 660 x 1016 mm
