Usually ships in 20 business days
| Model No | 35190 |
|---|---|
| UPC | 697841210677 |
| Brand | Justrite |

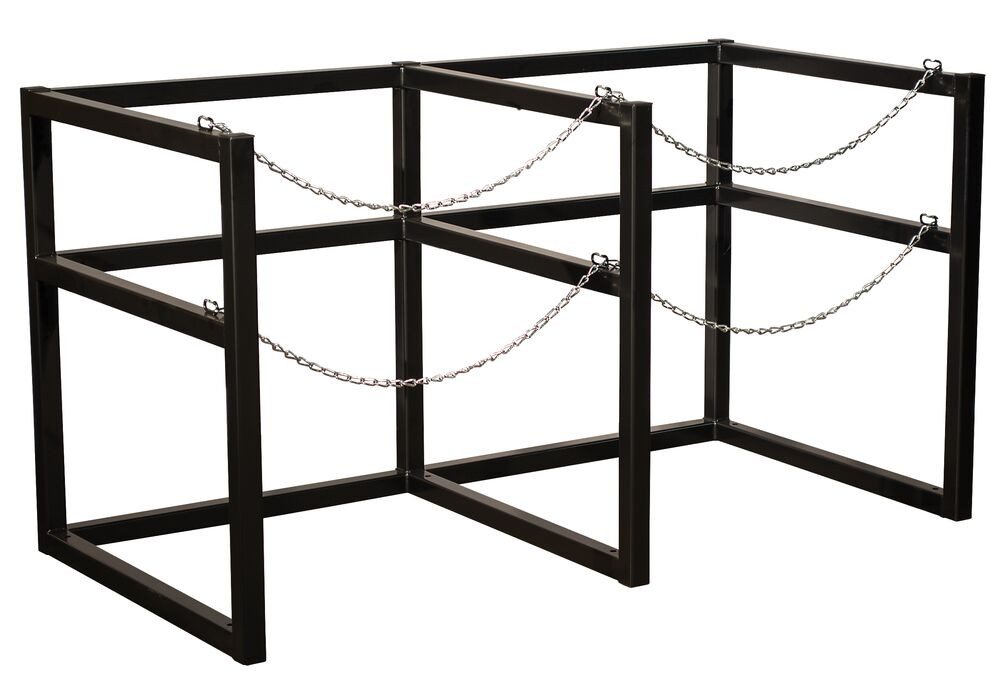

Recommended for indoor or outdoor cryogenic cylinder storage, barricade racks surround cylinders with 2-in (51-mm) square steel structural tubing, continuously seam welded at all junction points and sealed with exterior grade powder-coat paint for long lasting strength, durability and dependability. Tops ground smooth and capped with high-density polyethylene (HDPE) caps to prevent corrosion and injuries. Features two levels of welded steel chains for each cylinder and clasps to connect the chains to the rack, ensuring a snug fit. Pre-drilled 0.531-in (14-mm) diameter floor mounting holes included on lower tube structure. For seismic installations, add Model 35350 S4-rated anchor bolts (not included).
Helps comply with OSHA, NFP1, NFPA 55, and CGA.
| Model No | 35190 |
|---|---|
| UPC | 697841210677 |
| Brand | Justrite |
| Cylinder Capacity | 2 |
| Minimum Cylinder Diam (in) | 28 |
| Cylinder Capacity with Max Cylinder Dia | (1) 33 inch |
| Mount Type | Floor |
| Mount Holes | 6 |
| Mount Hole Size (inch) | 0.531 |
| Strap Style | Chain |
| Straps Per Cylinder | 2 |
| Material Specifications | Steel |
| Complies with NFPA 1 Fire-Code | Yes |
| NFPA 55 | Yes |
| OSHA Compliance | Yes |
| CGA | Yes |
| High Hazard Seismic Zone | Yes |
| Net Weight, lbs | 186 |
| Net Weight, kg | 84 |
| Net Dimensions (W x D x H) | 74 x 36 x 40 inches |
| 1880 x 914 x 1016 mm |
