1 Wide by 2 Deep, Gas Cylinder Barricade Rack, 2 Cylinder Capacity - 35084

Model No
35084
$625.00

Made in USA

Usually ships in 10 days Please contact customer service at
800-798-9250 for lead times.

Need a bulk or special order? Get a quote

Compliance OSHA Compliance

Description:

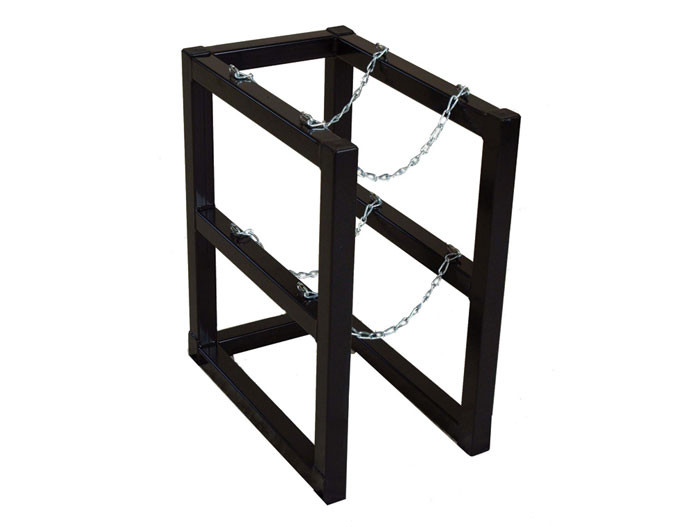

Recommended for indoor or outdoor bulk cylinder storage, barricade racks surround cylinders with 2-in (51-mm) square steel structural tubing, continuously seam welded at all junction points and sealed with exterior grade powder-coat paint for long lasting strength, durability and dependability. Tops ground smooth and capped with high-density polyethylene (HDPE) caps to prevent corrosion and injuries. Features two levels of welded steel chains for each cylinder and clasps to connect the chains to the rack, ensuring a snug fit. Pre-drilled 0.531-in (14-mm) diameter floor mounting holes included on lower tube structure. For seismic installations, add Model 35350 S4-rated anchor bolts (not included).

Helps comply with OSHA, NFP1, NFPA 55, and CGA.

Product Summary:

  • 12" wide cylinder bays
  • Meets USGS high-hazard seismic zone requirements when properly mounted

Specifications

More Information
Model No 35084
UPC 697841210158
Cylinder Capacity 2
Minimum Cylinder Diam (in) 8
Cylinder Capacity with Max Cylinder Dia (2) 12 inch
Mount Type Floor
Mount Holes 4
Mount Hole Size (inch) 0.531
Strap Style Chain
Straps Per Cylinder 2
Material Specifications Steel
Complies with NFPA 1 Fire-Code Yes
NFPA 55 Yes
OSHA Compliance Yes
CGA Yes
High Hazard Seismic Zone Yes
Net Weight, lbs 82
Net Weight, kg 37
Net Dimensions (W x D x H) 16 x 26 x 30 inches
406 x 660 x 762 mm
