Gas Cylinder Barricade Rack, 12 Cylinder Capacity, with Ramp, Steel - 35226

Model No
Warranty icon

Made in USA

Usually ships in 20 days Please contact customer service at
800-798-9250 for lead times.

Compliance OSHA Compliance

Product Summary

  • Secure cylinders up to 11-in (279-mm) in diameter
  • Fully enclosed 7.75-in wide (197-mm) forklift channels with two way access

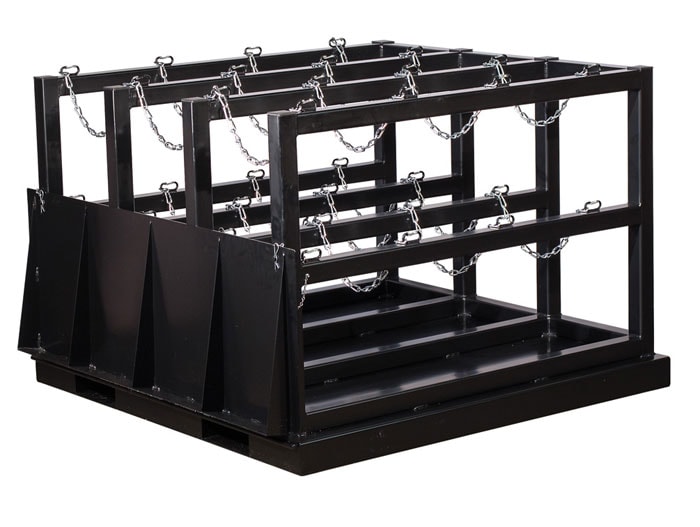

Transport multiple gas cylinders securely with a forklift using these end-load oriented barricade rack pallets. Barricade racks surround cylinders with structural steel tubing, continuously seam welded at all junction points and mounted to the pallet. They are sealed with exterior grade powder-coat paint for long lasting strength, durability and dependability. Tops ground smooth and capped with high-density polyethylene (HDPE) caps to prevent corrosion and injuries. Features two levels of welded steel chains for each cylinder and clasps to connect the chains to the rack, ensuring a snug fit.

Helps comply with OSHA, NFP1, NFPA 55, and CGA.


More Information
Model No 35226
UPC 697841210769
Cylinder Capacity 12
Minimum Cylinder Diam (in) 6
Cylinder Capacity with Max Cylinder Dia (12) 11 inch
Mount Type Forklift
Weight Capacity (lb) 3600
Weight Capacity (kg) 1633
Strap Style Chain
Straps Per Cylinder 2
Material Specifications Steel
Complies with NFPA 1 Fire-Code Yes
NFPA 55 Yes
OSHA Compliance Yes
Net Weight, lbs 435
Net Weight, kg 197
Net Dimensions (W x D x H) 48 x 66 x 33 inches
1219 x 1676 x 838 mm
