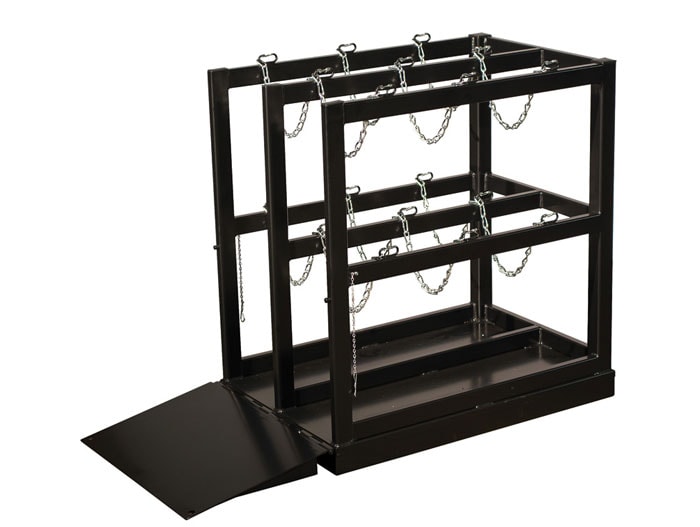

Gas Cylinder Barricade Rack, 6 Cylinder Capacity, With Ramp, Steel - 35224

Model No
Warranty icon

Made in USA

Usually ships in 14 days Please contact customer service at
800-798-9250 for lead times.

Compliance OSHA Compliance

Product Summary

  • Secure cylinders up to 10-in (254-mm) in diameter
  • Fully enclosed 7.75-in wide (197-mm) forklift channels with two way access


Transport multiple gas cylinders securely with a forklift using these end-load oriented barricade rack pallets. Barricade racks surround cylinders with structural steel tubing, continuously seam welded at all junction points and mounted to the pallet. They are sealed with exterior grade powder-coat paint for long lasting strength, durability and dependability. Tops ground smooth and capped with high-density polyethylene (HDPE) caps to prevent corrosion and injuries. Features two levels of welded steel chains for each cylinder and clasps to connect the chains to the rack, ensuring a snug fit.

Helps comply with OSHA, NFP1, NFPA 55, and CGA.


More Information
Model No 35224
UPC 697841210752
Cylinder Capacity 6
Minimum Cylinder Diam (in) 6
Cylinder Capacity with Max Cylinder Dia (6) 10 inch
Mount Type Forklift
Weight Capacity (lb) 1800
Weight Capacity (kg) 816
Strap Style Chain
Straps Per Cylinder 2
Material Specifications Steel
Complies with NFPA 1 Fire-Code Yes
NFPA 55 Yes
OSHA Compliance Yes
Net Weight, lbs 230
Net Weight, kg 104
Net Dimensions (W x D x H) 24 x 54 x 37 inches
610 x 1372 x 940 mm
