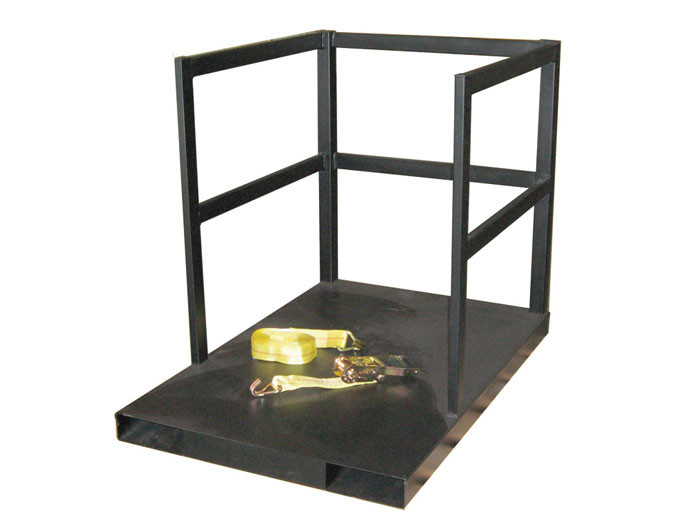

End Loaded Gas Cylinder Pallet, 14 Cylinder Capacity, Steel - 35214

Model No
35214
$1,171.00

Made in USA

Usually ships in 10 days Please contact customer service at
800-798-9250 for lead times.

Need a bulk or special order? Get a quote

Compliance OSHA Compliance

Description

Transport multiple gas cylinders securely with a forklift using these end-load oriented pallets. Secure a group of gas cylinders using the 10,000-lb (4,536-kg) DOT compliant strap that attaches to frame at either 12-, 24- or 36-in (305-, 610- or 915-mm) from the deck. Fully welded construction from 11-gauge (3-mm) hot-rolled steel and structural tube steel, powder-coated to ensure longevity and chemical resistance.

Helps comply with OSHA, NFP1, NFPA 55, and CGA.

Product Summary

  • Fully enclosed 7.75-in wide (197-mm) forklift channels with two way access
  • Textured finish on the pallet provides a non-skid surface

Specifications

More Information
Model No 35214
UPC 697841210707
Cylinder Capacity Varies
Cylinder Capacity with Max Cylinder Dia (14) 9 inch, (7) 12 inch, or (2) 21 inch
Mount Type Forklift
Weight Capacity (lb) 3600
Weight Capacity (kg) 1633
Strap Style Ratchet Binding
Straps Per Cylinder 1 Total
Material Specifications Steel
Complies with NFPA 1 Fire-Code Yes
NFPA 55 Yes
OSHA Compliance Yes
CGA Yes
Net Weight, lbs 177
Net Weight, kg 80
Net Dimensions (W x D x H) 32 x 48 x 38 inches
813 x 1219 x 965 mm
