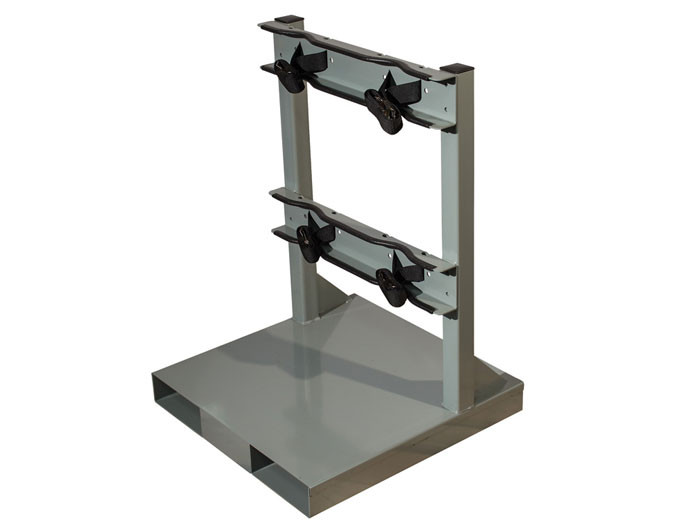

Individually Secured Gas Cylinder Pallet, 2 Cylinder Capacity, Steel - 35228

Model No
35228
$685.00

Made in USA

Usually ships in 20 days

Need a bulk or special order? Get a quote

Compliance OSHA Compliance

Description:

Transport multiple gas cylinders securely with a forklift using these pallets. Fully welded construction from 11-gauge (3-mm) hot-rolled steel, powder-coated to ensure longevity and chemical resistance. Heavy-duty polypropylene support straps, 1.5- x 54-in (38-mm x 1372-mm) and rated at 1138-lb (516-kg), feature steel cinch buckle and hold individual cylinders securely against integral bracket. For an improved level of safety for any installation, all brackets include openings to retrofit secondary support chains, one set for each cylinder strap location.

Helps comply with OSHA, NFP1, NFPA 55, and CGA.

Product Summary:

  • Fully enclosed 7.75-in wide (197-mm) forklift channels with two way access
  • Exclusive bumper guard edging with steel reinforced vinyl protects your cylinders from damage while providing extra grip
  • Accepts cylinders from 4- to 12-in (102- to 305-mm) in diameter

Specifications

More Information
Model No 35228
UPC Code 697841210776
Cylinder Capacity 2
Minimum Cylinder Diam (in) 4
Cylinder Capacity with Max Cylinder Dia (2) 12 inch
Mount Type Forklift
Weight Capacity (lb) 800
Weight Capacity (kg) 363
Strap Style Poly Cinch Strap with Steel Buckle
Straps Per Cylinder 2
Material Specifications Steel
Complies with NFPA 1 Fire-Code Yes
NFPA 55 Yes
OSHA Compliance Yes
CGA Yes
Net Weight, lbs 102
Net Weight, kg 46
Net Dimensions (W x D x H) 24 x 24 x 33 inches
610 x 610 x 838 mm
