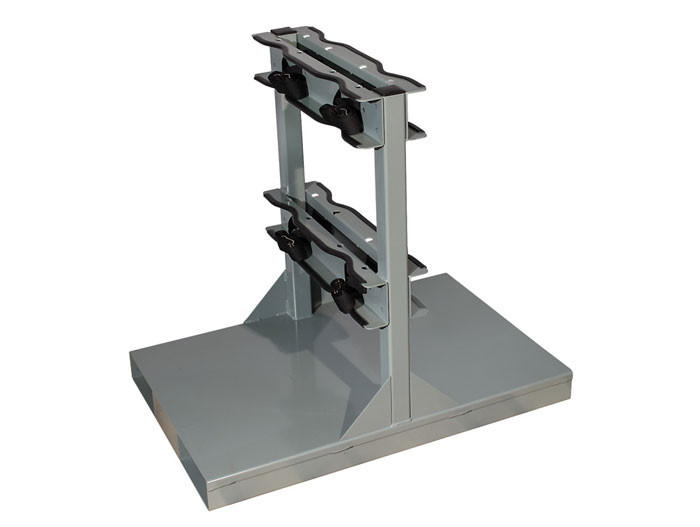

Individually Secured Gas Cylinder Pallet, 4 Cylinder Capacity, Steel - 35232

Model No
35232
$993.00

Usually ships in 3 days Please contact customer service at
800-798-9250 for lead times.

Warranty icon

Made in USA

Compliance OSHA Compliance

Product Summary

  • Fully enclosed 7.75-in wide (197-mm) forklift channels with two way access
  • Exclusive bumper guard edging with steel reinforced vinyl protects your cylinders from damage while providing extra grip
  • Accepts cylinders from 4- to 12-in (102- to 305-mm) in diameter

Description

Transport multiple gas cylinders securely with a forklift using these pallets. Fully welded construction from 11-gauge (3-mm) hot-rolled steel, powder-coated to ensure longevity and chemical resistance. Heavy-duty polypropylene support straps, 1.5- x 54-in (38-mm x 1372-mm) and rated at 1138-lb (516-kg), feature steel cinch buckle and hold individual cylinders securely against integral bracket. Back-to-back cylinder storage offers maximum space utilization. For an improved level of safety for any installation, all brackets include openings to retrofit secondary support chains, one set for each cylinder strap location.

Helps comply with OSHA, NFP1, NFPA 55, and CGA.

Specifications

More Information
Model No 35232
UPC 697841210790
Cylinder Capacity 4
Minimum Cylinder Diam (in) 4
Cylinder Capacity with Max Cylinder Dia (4) 12 inch
Mount Type Forklift
Weight Capacity (lb) 1200
Weight Capacity (kg) 544
Strap Style Poly Cinch Strap with Steel Buckle
Straps Per Cylinder 2
Material Specifications Steel
Complies with NFPA 1 Fire-Code Yes
NFPA 55 Yes
OSHA Compliance Yes
CGA Yes
Net Weight, lbs 116
Net Weight, kg 53
Net Dimensions (W x D x H) 24 x 36 x 34 inches
610 x 914 x 864 mm
