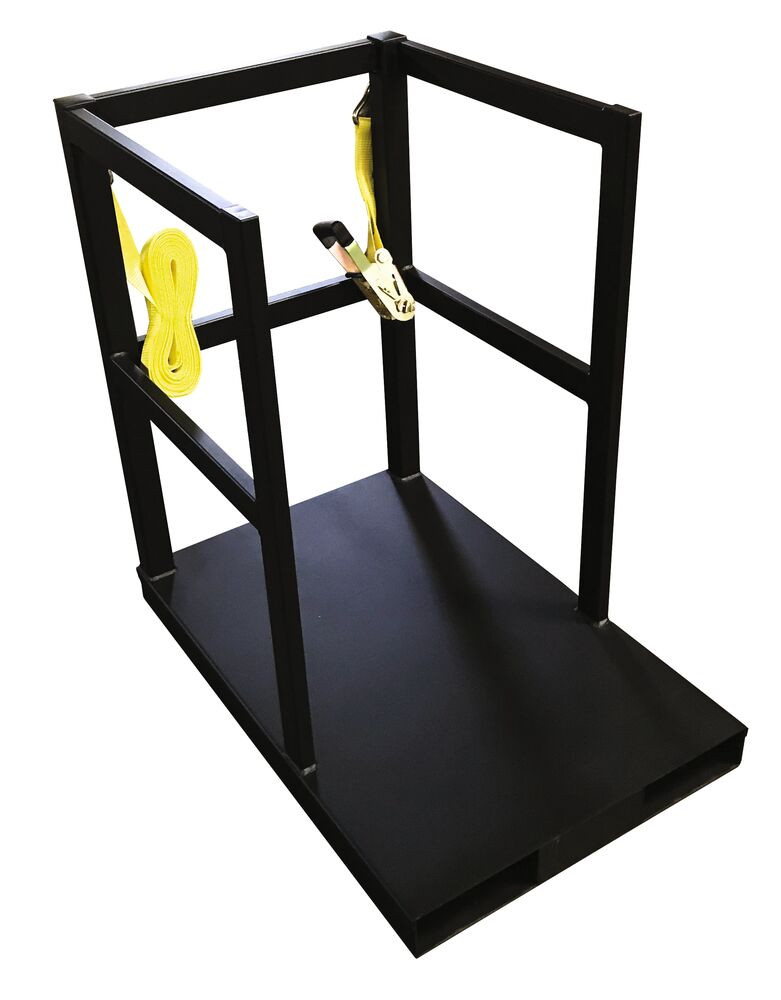

End Loaded Gas Cylinder Pallet, 6 Cylinder Capacity, Steel - 35210

Model No
Warranty icon

Made in USA

Usually ships in 14 days Please contact customer service at
800-798-9250 for lead times.

Compliance OSHA Compliance

Product Summary

  • Fully enclosed 7.75-in wide (197-mm) forklift channels with two way access
  • Textured finish on the pallet provides a non-skid surface


Transport multiple gas cylinders securely with a forklift using these end-load oriented pallets. Secure a group of gas cylinders using the 10,000-lb (4,536-kg) DOT compliant strap that attaches to frame at either 12-, 24- or 36-in (305-, 610- or 915-mm) from the deck. Fully welded construction from 11-gauge (3-mm) hot-rolled steel and structural tube steel, powder-coated to ensure longevity and chemical resistance.

Helps comply with OSHA, NFP1, NFPA 55, and CGA.


More Information
Model No 35210
UPC 697841210684
Cylinder Capacity Varies
Cylinder Capacity with Max Cylinder Dia (6) 9 inch
Mount Type Forklift
Weight Capacity (lb) 2400
Weight Capacity (kg) 1089
Strap Style Ratchet Binding
Straps Per Cylinder 1 Total
Material Specifications Steel
Complies with NFPA 1 Fire-Code Yes
NFPA 55 Yes
OSHA Compliance Yes
Net Weight, lbs 136
Net Weight, kg 62
Net Dimensions (W x D x H) 24 x 36 x 38 inches
610 x 914 x 965 mm



Download Specification PDF
