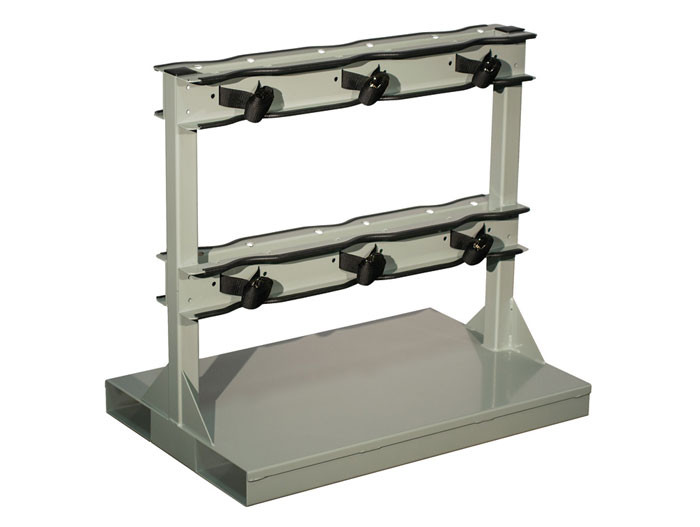

Individually Secured Gas Cylinder Pallet, 6 Cylinder Capacity, Steel - 35234

Individually Secured Gas Cylinder Pallet, 6 Cylinder Capacity, Steel - 35234
$1,465.00

Need a bulk or special order? Get a quote

Usually ships within 10 business days

Transport multiple gas cylinders securely with a forklift using these pallets. Fully welded construction from 11-gauge (3-mm) hot-rolled steel, powder-coated to ensure longevity and chemical resistance. Heavy-duty polypropylene support straps, 1.5- x 54-in (38-mm x 1372-mm) and rated at 1138-lb (516-kg), feature steel cinch buckle and hold individual cylinders securely against integral bracket. Back-to-back cylinder storage offers maximum space utilization. For an improved level of safety for any installation, all brackets include openings to retrofit secondary support chains, one set for each cylinder strap location.

Helps comply with OSHA, NFP1, NFPA 55, and CGA.

Usually ships within 10 business days

Transport multiple gas cylinders securely with a forklift using these pallets. Fully welded construction from 11-gauge (3-mm) hot-rolled steel, powder-coated to ensure longevity and chemical resistance. Heavy-duty polypropylene support straps, 1.5- x 54-in (38-mm x 1372-mm) and rated at 1138-lb (516-kg), feature steel cinch buckle and hold individual cylinders securely against integral bracket. Back-to-back cylinder storage offers maximum space utilization. For an improved level of safety for any installation, all brackets include openings to retrofit secondary support chains, one set for each cylinder strap location.

Helps comply with OSHA, NFP1, NFPA 55, and CGA.

Compliance OSHA Compliance
Model No. 35234
Cylinder Capacity 6
Minimum Cylinder Diam (in) 4
Cylinder Capacity with Max Cylinder Dia (6) 12 inch
Mount Type Forklift
Weight Capacity (lb) 1800
Weight Capacity (kg) 816
Strap Style Poly Cinch Strap with Steel Buckle
Straps Per Cylinder 2
Material Specifications Steel
Complies with NFPA 1 Fire-Code Yes
NFPA 55 Yes
OSHA Compliance Yes
CGA Yes
Net Weight, lbs 156
Net Weight, kg 71
Net Dimensions (W x D x H) 24 x 36 x 34 inches
610 x 914 x 864 mm
