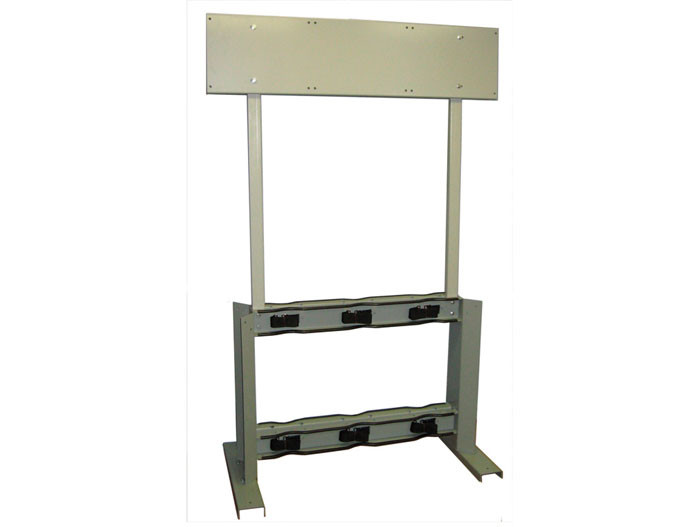

Steel Gas Cylinder Process Stand, 6 Cylinder Capacity, Back-to-Back - 35314

Model No
Warranty icon

Made in USA

Usually ships in 5 days Please contact customer service at
800-798-9250 for lead times.

Compliance OSHA Compliance

Product Summary

  • Securely mount cylinder controls and cross-over devices with integral elevated panels
  • Welded construction using 11-gauge (3-mm) steel provides structural integrity and longevity
  • Exclusive bumper guard edging with steel reinforced vinyl protects your cylinders from damage while providing extra grip
  • Accepts cylinders from 4- to 12-in (102- to 305-mm) in diameter


Designed for the safe storage and distribution of industrial and commercial use compressed gas cylinders, these storage stands help prevent dangerous tipping situations. Back-to-back cylinder storage for maximum space utilization. Powder-coated to ensure long service life and chemical resistance. Pre-drilled holes in base for floor mounting with application specific fasteners (not included).

Two heavy-duty polypropylene support straps, 1.5- x 54-in (38-mm x 1372-mm) and rated at 1138-lb (516-kg), feature steel cinch buckle and hold individual cylinders securely against integral bracket. For an improved level of safety for any installation, all brackets include openings to retrofit secondary support chains, one set for each cylinder strap location.

Helps comply with OSHA, NFP1, NFPA 55, and CGA.


More Information
Model No 35314
UPC 697841211124
Cylinder Capacity 6
Minimum Cylinder Diam (in) 4
Cylinder Capacity with Max Cylinder Dia (6) 12 inch
Process Controls Mounting Rail Panel
Mount Type Floor
Mount Holes 4
Mount Hole Size (inch) 0.406
Strap Style Poly Cinch Strap with Steel Buckle
Straps Per Cylinder 2
Material Specifications Steel
Complies with NFPA 1 Fire-Code Yes
NFPA 55 Yes
OSHA Compliance Yes
Net Weight, lbs 129
Net Weight, kg 59
Net Dimensions (W x D x H) 48 x 23 x 72 inches
1219 x 584 x 1829 mm
