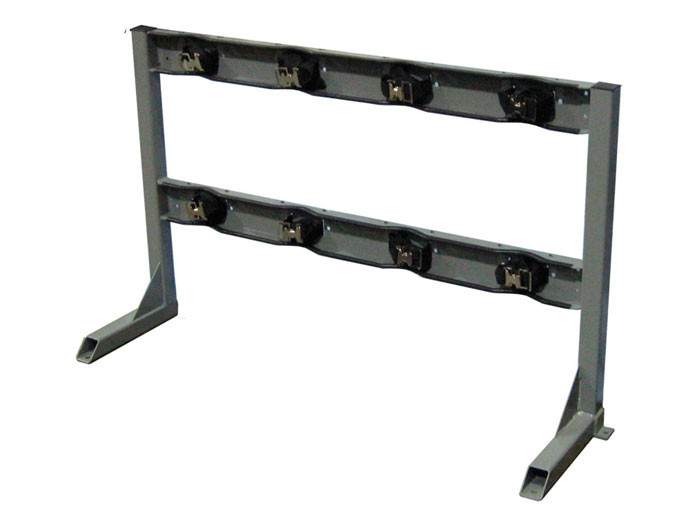

Steel Gas Cylinder Stand, 4 Cylinder Capacity, In-Line - 35298

Model No
35298
$576.00

Usually ships in 3 business days

Warranty icon

Made in USA

Compliance OSHA Compliance

Product Summary

  • Fully welded construction using 11-gauge (3-mm) steel provides structural integrity and longevity
  • Exclusive bumper guard edging with steel reinforced vinyl protects your cylinders from damage while providing extra grip
  • Accepts cylinders from 4- to 12-in (102- to 305-mm) in diameter

Description

Designed for the safe storage of industrial and commercial use compressed gas cylinders, these storage stands help prevent dangerous tipping situations. Powder-coated to ensure long service life and chemical resistance. Pre-drilled holes in base for floor mounting with application specific fasteners (not included).

Two heavy-duty polypropylene support straps, 1.5- x 54-in (38-mm x 1372-mm) and rated at 1138-lb (516-kg), feature steel cinch buckle and hold individual cylinders securely against integral bracket. For an improved level of safety for any installation, all brackets include openings to retrofit secondary support chains, one set for each cylinder strap location.

Helps comply with OSHA, NFP1, NFPA 55, and CGA.

Specifications

More Information
Model No 35298
UPC 697841211049
Cylinder Capacity 4
Minimum Cylinder Diam (in) 4
Cylinder Capacity with Max Cylinder Dia (4) 12 inch
Mount Type Floor
Mount Holes 4
Mount Hole Size (inch) 0.531
Strap Style Poly Cinch Strap with Steel Buckle
Straps Per Cylinder 2
Material Specifications Steel
Complies with NFPA 1 Fire-Code Yes
NFPA 55 Yes
OSHA Compliance Yes
CGA Yes
Net Weight, lbs 70
Net Weight, kg 32
Net Dimensions (W x D x H) 52 x 14 x 30 inches
1321 x 356 x 762 mm
