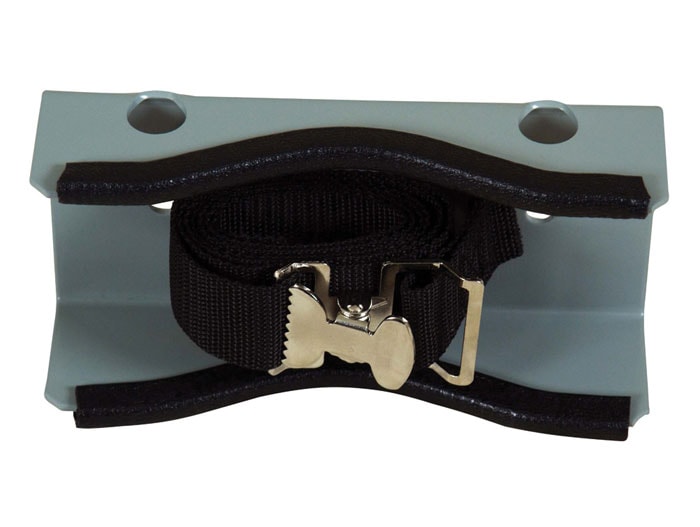

Steel Gas Cylinder Support Bracket, One 12" Cylinder Capacity, Wall Mount - 35250

Model No
35250
$32.00

Usually ships in 3 days Please contact customer service at
800-798-9250 for lead times.

Warranty icon

Made in USA

Compliance OSHA Compliance

Product Summary

  • Brackets accept cylinder sizes ranging from 4- to 12-in (102- to 305-mm)
  • Exclusive bumper guard edging with steel reinforced vinyl protects your cylinders from damage while providing extra grip
  • Designed for wall mounting applications

Description

Cylinder support brackets provide a quick and easy solution for storing gas cylinders when space is at premium. Constructed from heavy gauge, powder-coated steel to ensure long service life and chemical resistance. Heavy-duty polypropylene support straps, 1.5- x 54-in (38-mm x 1372-mm) and rated at 1138-lb (516-kg), feature steel cinch buckle and hold individual cylinders securely against bracket. For an improved level of safety for any installation, all brackets include openings to retrofit secondary support chains, one set for each cylinder station.

Helps comply with OSHA, NFP1, NFPA 55, and CGA.

Specifications

More Information
Model No 35250
UPC 697841210813
Cylinder Capacity 1
Minimum Cylinder Diam (in) 4
Cylinder Capacity with Max Cylinder Dia (1) 12 inch
Mount Type Wall
Mount Holes 2
Mount Hole Size (inch) 0.406
Strap Style Poly Cinch Strap with Steel Buckle
Straps Per Cylinder 1
Material Specifications Steel
Complies with NFPA 1 Fire-Code Yes
NFPA 55 Yes
OSHA Compliance Yes
CGA Yes
Net Weight, lbs 3
Net Weight, kg 1
Net Dimensions (W x D x H) 8 x 2.25 x 4.25 inches
203 x 57 x 108 mm
