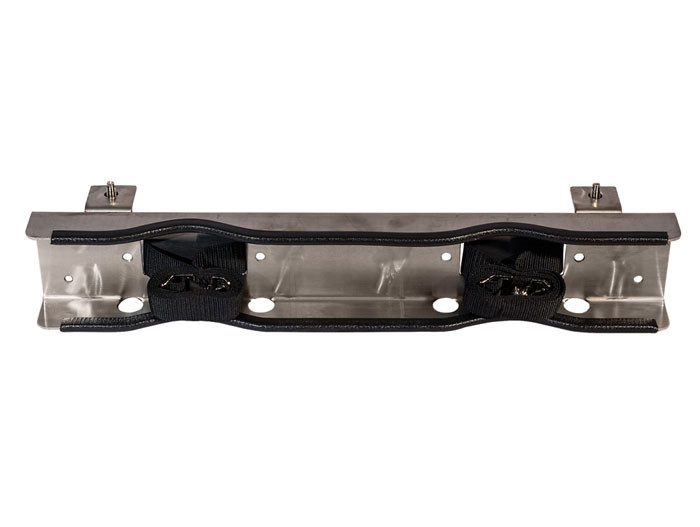

Stainless Steel Gas Cylinder Support Bracket, Two 12" Cylinder Capacity, Bench Mount - 35272

Model No
35272
$259.00
Warranty icon

Made in USA

Usually ships in 3 days Please contact customer service at
800-798-9250 for lead times.

Compliance OSHA Compliance

Product Summary

  • Brackets accept cylinder sizes ranging from 4- to 12-in (102- to 305-mm)
  • Exclusive bumper guard edging with steel reinforced vinyl protects your cylinders from damage while providing extra grip
  • Designed for bench mounting applications

Description

Cylinder support brackets provide a quick and easy solution for storing gas cylinders when space is at premium. Constructed from heavy gauge, stainless steel to ensure long service life and improved corrosion resistance. Using dual 0.375-in (10-mm) diameter clamping posts with 1.5-in (38-mm) swivel pad faces, these models clamp to tables 1- to 2.75-in (26- to 70-mm) thick. Heavy-duty polypropylene support straps, 1.5- x 54-in (38-mm x 1372-mm) and rated at 1138-lb (516-kg), feature steel cinch buckle and hold individual cylinders securely against bracket. For an improved level of safety for any installation, all brackets include openings to retrofit secondary support chains, one set for each cylinder station.

Helps comply with OSHA, NFP1, NFPA 55, and CGA.

Specifications

More Information
Model No 35272
UPC 697841210929
Cylinder Capacity 2
Minimum Cylinder Diam (in) 4
Cylinder Capacity with Max Cylinder Dia (2) 12 inch
Mount Type Wall
Strap Style Poly Cinch Strap with Nylon Buckle
Straps Per Cylinder 1
Material Specifications Stainless Steel
Complies with NFPA 1 Fire-Code Yes
NFPA 55 Yes
OSHA Compliance Yes
CGA Yes
Net Weight, lbs 11
Net Weight, kg 5
Net Dimensions (W x D x H) 23.75 x 4 x 4.25 inches
603 x 102 x 108 mm
