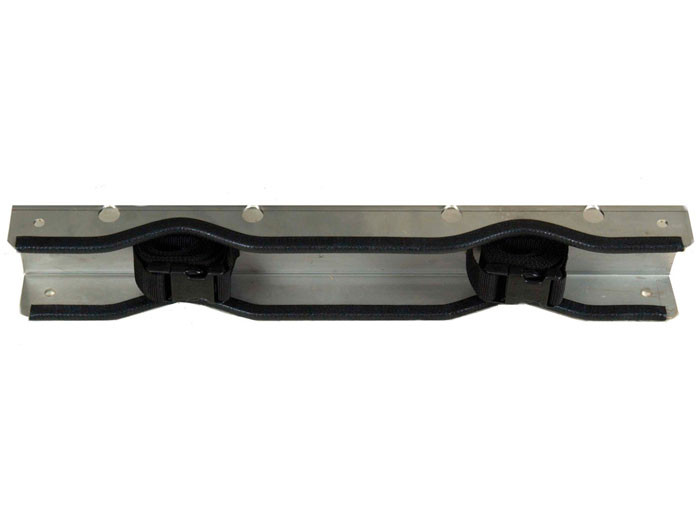

Stainless Steel Gas Cylinder Support Bracket, Two 12" Cylinder Capacity, Wall Mount - 35266

Model No
35266
$165.00

Made in USA

Usually ships in 10 days

Need a bulk or special order? Get a quote

Compliance OSHA Compliance

Description:

Cylinder support brackets provide a quick and easy solution for storing gas cylinders when space is at premium. Constructed from heavy gauge, stainless steel to ensure long service life and improved corrosion resistance. Heavy-duty polypropylene support straps, 1.5- x 54-in (38-mm x 1372-mm) and rated at 1138-lb (516-kg), feature nylon side latch buckle and hold individual cylinders securely against bracket. For an improved level of safety for any installation, all brackets include openings to retrofit secondary support chains, one set for each cylinder station.

Helps comply with OSHA, NFP1, NFPA 55, and CGA.

Product Summary:

  • Brackets accept cylinder sizes ranging from 4- to 12-in (102- to 305-mm)
  • Exclusive bumper guard edging with steel reinforced vinyl protects your cylinders from damage while providing extra grip
  • Designed for wall mounting applications

Specifications

More Information
Model No 35266
UPC Code 697841210899
Cylinder Capacity 2
Minimum Cylinder Diam (in) 4
Cylinder Capacity with Max Cylinder Dia (2) 12 inch
Mount Type Wall
Mount Holes 4
Mount Hole Size (inch) 0.406
Strap Style Poly Cinch Strap with Nylon Buckle
Straps Per Cylinder 1
Material Specifications Stainless Steel
Complies with NFPA 1 Fire-Code Yes
NFPA 55 Yes
OSHA Compliance Yes
CGA Yes
Net Weight, lbs 9
Net Weight, kg 4
Net Dimensions (W x D x H) 23.75 x 2.25 x 4.25 inches
603 x 57 x 108 mm
