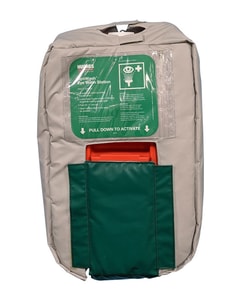

10 Gallon Heated Jacket for Hughes Gravity Fed Eyewash, 120V Plug - 10GFEW-BLKT-HT

Model No

Usually ships in 60 days Please contact customer service at
800-798-9250 for lead times.

Product Summary

Hughes Logo

Key Benefits

  • UL approved thermostat controls the temperature and provides overheat protection
  • Freeze protected up to -30°F (-34° C), maintained temperature is 68° - 77°F (20° - 25°C)
  • Quickly installed on the OptiWash™, using hook and loop fasteners and drawstrings
  • Insulated jacket helps maintain tepid water in warm climates
  • Eyewash easily activated by pulling on the orange activation arm down to the open position

WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.


This heated, insulated jacket is the perfect accessory to maintain ANSI compliant tepid water in operating temperatures up to -30°F (-34° C). Quickly fits over Hughes model 10GFEW OptiWash™ 10-gallon eye wash station. Trace tape heated design with 120V, 60/50Hz electrical requirement, includes 10 ft power cord with UL listed, CSA certified GFCI plug. The jacket can be used in cold or warm climates, it's simple to put on or take off the OptiWash™ eye wash station. Eyewash sold separately.


More Information
Color Gray
UPC 805042001639
Capacity 10 gallon
Liter Capacity 38
Net Weight, lbs 13
Net Weight, kg 5.89
Dimensions, Exterior 29" H x 19" W x 3" D
736.6mm H x 482.6mm W x 76.2mm D
Material Specifications PVC Coated Polyester
Activation Method Pull Handle
Electrical Equipment Classification General Purpose
Heating Type Trace Tape Heated and Pre-Insulated
Heating Load, Watts 60
Electrical Supply 120 VAC, Single Phase, 60/50 Hz



Download Specification PDF
