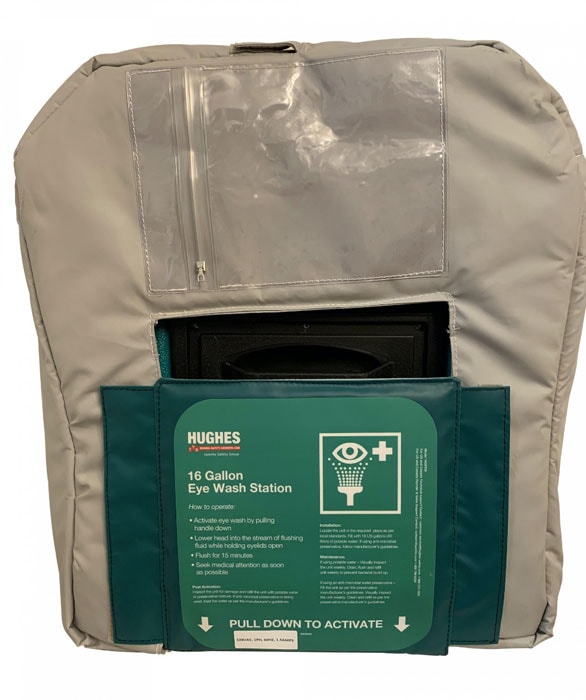

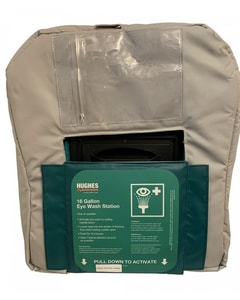

16 Gallon Heated Jacket for Hughes Gravity Fed Eyewash, 120V Plug - 16GFEW-BLKT-HT

Model No

Usually ships in 1-2 days Please contact customer service at
800-798-9250 for lead times.

Need a bulk or special order? Get a quote

Product Summary

Hughes Logo

Key Benefits

  • UL approved thermostat controls the temperature and provides overheat protection
  • Freeze protected up to -30°F (-34° C), maintained temperature is 68° - 77°F (20° - 25°C)
  • Insulated jacket helps maintain tepid water in warm climates
  • Quickly installed on the eyewash, using hook and loop fasteners and drawstrings
  • Eyewash easily activated by pulling on the black activation arm down to the open position

WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

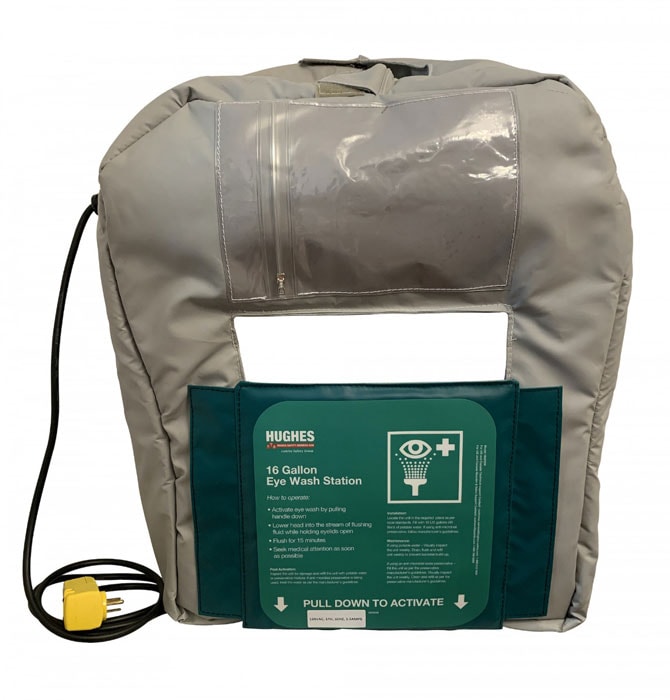

This heated, insulated jacket is the perfect accessory to maintain ANSI compliant tepid water in operating temperatures up to -31°F (-35° C). Quickly fits over Hughes model 16GFEW, 16-gallon eye wash station. Trace tape heated design with 120V, 60/50Hz electrical requirement includes 10 ft power cord with UL listed, CSA certified GFCI plug. The jacket can be used in cold or warm climates, and it's simple to put on or take off the eye wash station. Eyewash sold separately.


More Information
Color Gray
UPC 805042001653
Capacity 10 gallon
Liter Capacity 38
Net Weight, lbs 10
Net Weight, kg 5.89
Dimensions, Exterior 21" H x 26" W x 5" D
533.4mm H x 660.4mm W x 127mm D
Material Specifications PVC Coated Polyester
Activation Method Pull Handle
Electrical Equipment Classification General Purpose
Heating Type Trace Tape Heated and Pre-Insulated
Heating Load, Watts 60
Electrical Supply 120 VAC, Single Phase, 60/50 Hz



Download Specification PDF
