Wall Mount, 1 In-Line Nozzle, Hughes Handheld Drench Hose Eyewash Station - OPT100

Model No

Usually ships in 1-2 days Please contact customer service at
800-798-9250 for lead times.

Need a bulk or special order? Get a quote

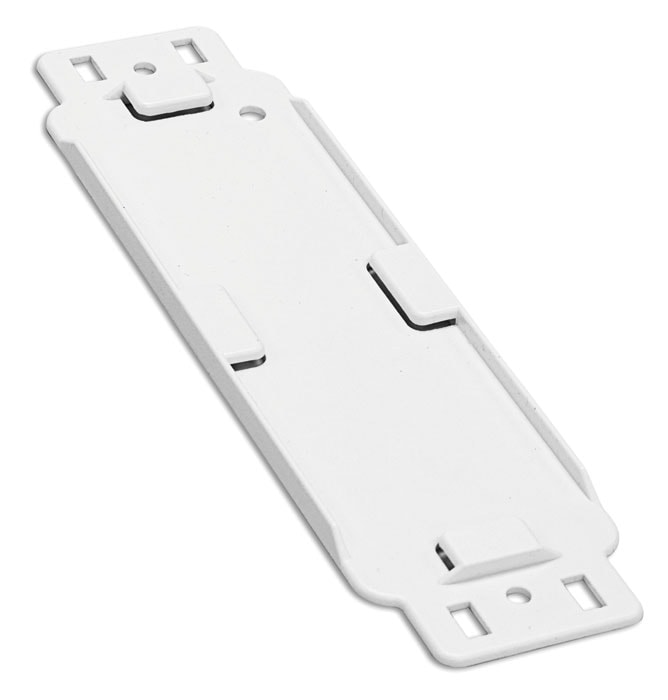

Wall mounted handheld drench hose features an in-line single nozzle for hazardous environments where there is a risk of small spillages of chemicals or dangerous substances. Includes an inspection record tag for recording test and service history.

Product Summary

Hughes Logo

  • Fitted with pop-off dust cover, a non-return valve and flow regulator
  • Complete with 4.9-feet (1.5-m) of reinforced hose, particularly useful for treating disabled personnel
  • Lock-on actuating button for ease of use


More Information
Model No OPT100
Color Multicolor
UPC 805042000137
Net Weight, lbs 2.2
Net Weight, kg 1
Dimensions, Exterior 10.8" H x 2.7" W x 2.7" D
274mm H x 69mm W x 69mm D
Water Inlet Size NPT 1/2 in (F) - Hose
Minimum Operating Pressure 1.5 bar g, 22 PSI
Maximum Operating Pressure 6 bar g, 87 PSI
Water Flow Eye/Face Liters/min 8
Water Flow Eye/Face US Gal/min 2.11
Operating Valve Material Non-return
Mounting Type Wall
Activation Method Squeeze grip operated with lock-on actuating button
Minimum Ambient Temperature, °F 41
Minimum Ambient Temperature, °C 5
Maximum Ambient Temperature, °F 95
Maximum Ambient Temperature, °C 35



Download Specification PDF
