Wall Mount, Hughes Handheld Eye/Face Wash, (2) 45-Degree Nozzles - OPT500

Model No
Warranty icon

Usually ships in 1-2 days Please contact customer service at
800-798-9250 for lead times.

Product Summary

Hughes Logo

  • Fitted with pop-off dust covers, a non-return valve and flow regulator
  • Complete with 4.9-feet (1.5-m) of reinforced hose, particularly useful for treating disabled personnel
  • Lock-on actuating button for ease of use

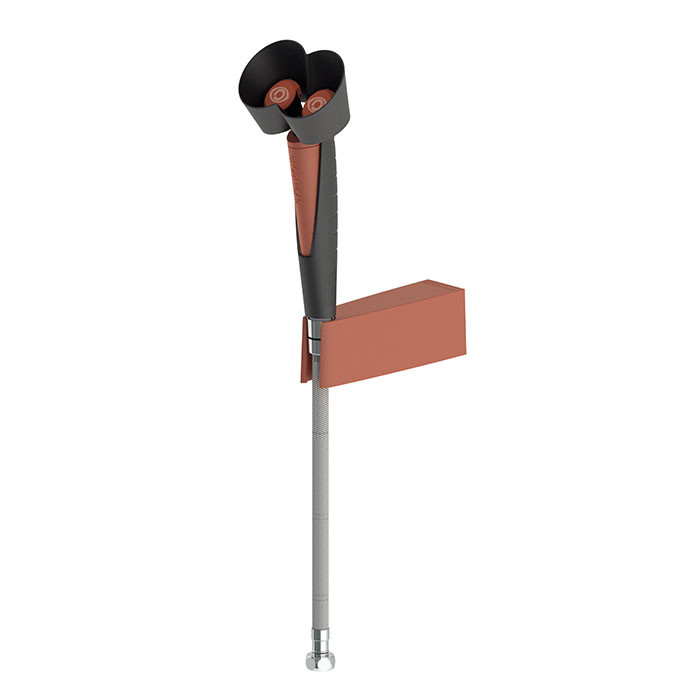

Wall mounted hand-held eye/face wash features 45 degree angled double nozzles for hazardous environments where there is a risk of small spillages of chemicals or dangerous substances. Meets ANSI and EN 15154 water flow standards for an eye/face wash. Includes an inspection record tag for recording test and service history.


More Information
Model No OPT500
Color Multicolor
UPC 805042000144
Net Weight, lbs 2.2
Net Weight, kg 1
Dimensions, Exterior 13.4" H x 5.9" W x 5.4" D
341mm H x 149mm W x 149mm D
Water Inlet Size NPT 1/2 in (F) - Hose
Minimum Operating Pressure 1.5 bar g, 22 PSI
Maximum Operating Pressure 6 bar g, 87 PSI
Water Flow Eye/Face Liters/min 11.4
Water Flow Eye/Face US Gal/min 3
Material Specifications Body: Polyarylamide (reinforced with glass fibers), Nozzles: Powder coated brass, Eye Cups: EPDM
Operating Valve Material Non-return
Mounting Type Wall
Activation Method Squeeze grip operated with lock-on actuating button
Minimum Ambient Temperature, °F 41
Minimum Ambient Temperature, °C 5
Maximum Ambient Temperature, °F 95
Maximum Ambient Temperature, °C 35



Download Specification PDF
