HPLC Manifold With Stainless Steel Fittings for Round Style or Quick-Disconnect Safety Disposal Can - 28168

Model No
28168
$259.00

Usually ships in 1-2 days Please contact customer service at
800-798-9250 for lead times.

Need a bulk or special order? Get a quote

Description:

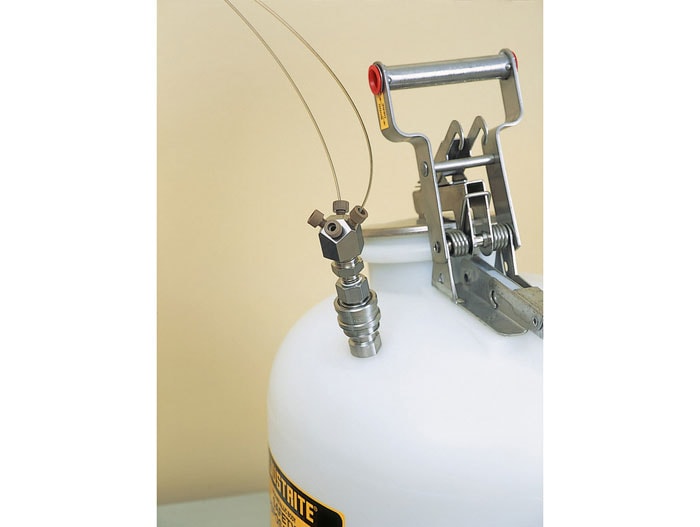

Safely collect waste from up to four waste lines from HPLC processes into a single intake fitting. Kit accommodates either 1/16" (2-mm) OD or 1/8" (3-mm) OD lines. Approximately 3-1/2" (89-mm) long and made of No. 316 gauge stainless steel, manifold fits only a stainless steel intake fitting. Four ports are tapped to accommodate 1/4-28 threads of the supplied fittings. PEEK™ fittings include four each: 1/16" (2-mm) and 1/8" (3-mm) OD tube fittings with corresponding PCTFE ferrules for compression fit of waste line. Four plug caps are provided to close unused ports. Multiple manifolds may be used on a custom-designed quick-disconnect container as long as one fitting remains unused. Safety container with manifold installed is OSHA compliant and meets NFPA Code 30. Use on round containers; not for use on oval style can.

Product Summary:

  • Collect waste from up to four waste lines into a single intake fitting
  • Complies with OSHA and NFPA Code 30
  • For use on round containers

Documentation

There are no file attachments for this product.

Specifications

More Information
Model No 28168
UPC Code 697841097216
International Model No. 28168
Color Silver
Material Specifications Stainless Steel
Dimensions, Exterior 2.125" H x 2.75" W x 8.75" L
54mm H x 70mm W x 222mm D x 222mm L
Net Weight, lbs 0.6
Net Weight, kg 0.3
