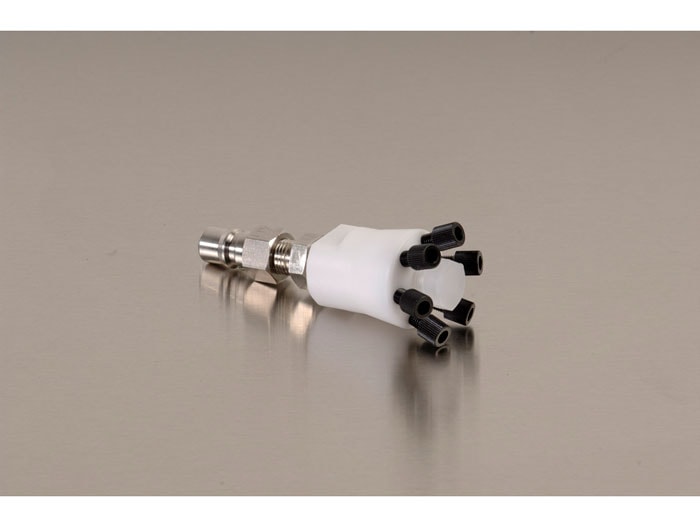

HPLC Poly Manifold With Stainless Steel Quick Disconnect for Safety Disposal Can - 28177

Model No

Made in USA

Usually ships in 1-2 days Please contact customer service at
800-798-9250 for lead times.

Need a bulk or special order? Get a quote

Product Summary

  • Cost-effective
  • Enables up to six waste lines to be fed into a single intake fitting
  • Complies with OSHA and NFPA Code 30
  • For use on round containers


The HPLC (PTFE) Manifold is a cost effective way to enable up to six waste lines (per manifold) from HPLC processes to be fed into a single intake fitting. Manifolds have six 1/4-28 ports and one 3/8" NPT port (with caps for unused ports), and either one quick disconnect in No. 316 stainless steel or polypropylene, or a No. 316 stainless steel stacker connector. The six ports are tapped to accommodate the 1/4-28 threads of the separately available compression fittings.

Safety container with manifold installed is US OSHA compliant and meets NFPA Code 30. Use on round containers; not for use on oval style can.


More Information
Model No 28177
UPC 697841121416
International Model No. 28177
Color Silver/White
Material Specifications Stainless Steel/Polypropylene
Dimensions, Exterior 4.5" H x 5" W x 7" L
114mm H x 127mm W x 178mm D x 178mm L
Net Weight, lbs 0.3
Net Weight, kg 0.1



Download Specification PDF
