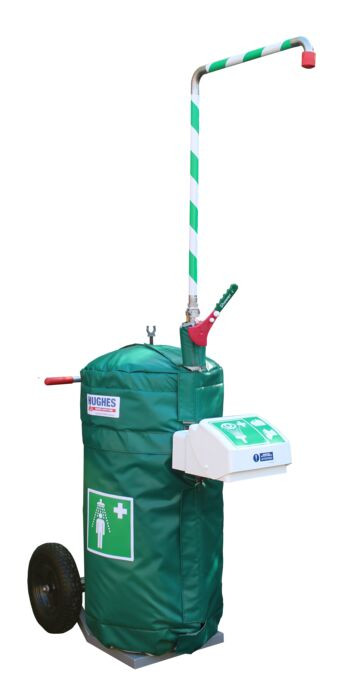

30 Gallon, Portable Hughes Self-Contained Safety Shower with Eye/Face Wash, Mobile, Insulated - J40K45G

Model No
J40K45G
$9,454.00

Usually ships in 30 days Please contact customer service at
800-798-9250 for lead times.

Need a bulk or special order? Get a quote

Description:

This highly mobile, self-contained safety shower with eye/face wash holds 30-gallons (114-liter) of water for use in responding to potential accidents anywhere. Suitable for temporary use, this exclusive design features a corrosion-resistant, polypropylene-lined pressurized cylinder and only requires the connection of a hose from a water main to fill it ready for use. Insulated jacket offers protection to the unit from frost or direct sunlight in ambient operating temperatures of 14°F (-10°C) for a maximum of 12 hours to 95°F (35°C). The soft polyester coated PVC jacket features a silicone glass cloth inner lining and a 25mm thick insulating matt.

Easily maneuvered by one person, it incorporates a stainless-steel frame and large diameter pneumatic tires—adjustable wheel spacing allows the unit to go through standard door openings. Disconnect shower arm for compact transportation.

The eye/face wash with high, ANSI-compliant flow rate features an integral lid connected to the water valve for automatic operation—activate by simply pulling down the lid. Easy-to-reach flow regulator valve positioned on the side of the bowl adjusts to suit the severity of the accident.

Product Summary:

Hughes Logo

  • For warm climates with a maximum of 95°F (35°C) or below
  • For cold climates with a minimum of 14°F (-10°C) or above. Water will freeze after 12 hours
  • Mobile eye/face wash and shower provides a continuous flow of water for 1-1/2 minutes
  • High-performance quarter-turn ball valves made of 316L stainless steel endure the harshest environments and site conditions
  • Covered, durable acrylic-capped ABS eye/face wash protects the bowl and eyewash diffusers from dust and debris
  • Twin diffusers provide a gentle flow of aerated water and prevent further injury to the eyes

WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specifications

More Information
Model No J40K45G
Color white
UPC 805042001745
Capacity 30 gallon
Liter Capacity 114
Net Weight, lbs 181
Net Weight, kg 82
Filled Weight, lbs 432
Filled Weight, kg 196
Dimensions, Exterior 91" H x 29" W x 57.5" D
2315mm H x 734mm W x 1462mm D
Water Inlet Size NPT 1/2 in Coupling
Minimum Operating Pressure 3 bar g, 43 PSI
Maximum Operating Pressure 5.5 bar g, 79 PSI
Water Flow Shower/Body Liters/min 75.7
Water Flow Shower/Body US Gal/min 20
Water Flow Eye/Face Liters/min 11.4
Water Flow Eye/Face US Gal/min 3
Operating Valve Material Shower Valve: 316L Stainless, Eye Wash Valve: Chrome plated brass
Eye/Face Wash Bowl Material Acrylic-Capped ABS Plastic
Mounting Type Portable
Pipework Material Stainless Steel
Activation Method Shower: Hand lever, Eye/Face: Pull lid forward
Eye/Face Wash Bowl Interior Dimensions 9.5" W x 8" D
241mm W x 203mm D
Maximum Ambient Temperature, °F 95
Maximum Ambient Temperature, °C 35
Operation Duration, min 1.5
Download Specification PDF
