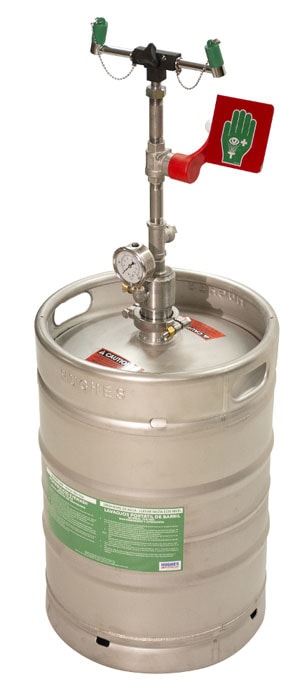

15 Gallon, Portable Self-Contained Hughes Eyewash Station, Pressurized - 15GEW

Model No
15GEW
Special Price $1,289.00 Regular Price $1,560.00

Usually ships in 1-2 days

Need a bulk or special order? Get a quote

Description:

Cost-effective, ANSI-compliant solution for locations that are unsuitable for fixed installations or those without access to a plumbed-in water supply.

Product Summary:

Hughes Logo

  • 15 US gallon (56.8 liter) stainless steel pressure vessel with built in carrying handles, provides emergency eye washing for up to 15 minutes
  • Pop-off dust covers and push lever operation for ease of use
  • Pressure gauge and dual action safety valve prevent over pressurization and allow the user to vent the cylinder for cleaning and maintenance
  • Includes ANSI-compliant identification sign on activation lever and inspection tag for recording test and service history
  • Use integral 1/2-in (F) NPT connection to attach optional drench hose OPT50 for decontamination of body parts subjected to minor exposure

WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specifications

More Information
Model No 15GEW
UPC Code 697841269941
Capacity 15 gallon
Liter Capacity 56.8
Net Weight, lbs 44
Net Weight, kg 20
Filled Weight, lbs 127
Filled Weight, kg 57.8
Dimensions, Exterior 41.2" H x 15.9" W x 15.9" D
1047mm H x 404mm W x 404mm D
Water Inlet Size NPT 1/2 in (F)
Minimum Operating Pressure 2.1 bar g, 30 PSI
Maximum Operating Pressure 5.5 bar g, 80 PSI
Water Flow Eye/Face Liters/min 1.5
Water Flow Eye/Face US Gal/min 0.4
Material Specifications Body: Stainless Steel, Eye/facewash diffusers: Chrome plated brass with stainless steel mesh
Operating Valve Material 316L Stainless
Pipework Material Stainless Steel
Color/Finish Labels: Green
Activation Method Push Plate
Minimum Ambient Temperature, °F 41
Minimum Ambient Temperature, °C 5
Maximum Ambient Temperature, °F 95
Maximum Ambient Temperature, °C 35
Operation Duration, min 15
