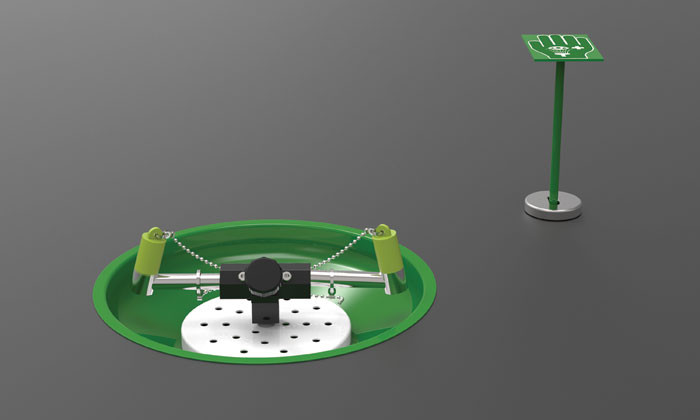

Ideal for laboratories, schools and general light duty indoor use, this eye/face wash unit mounts flush to a table or bench, meets ANSI Z358.1 and EN 15154 standards, and supports OSHA requirements. Pop-off dust covers protect the twin spray nozzles from contaminants, and are lifted off by the water jets upon operation via the push plate. Includes an inspection record tag for recording test and service history.
| Model No | L85GST |
|---|---|
| Color | Green |
| UPC | 805042000113 |
| Net Weight, lbs | 6.6 |
| Net Weight, kg | 3 |
| Dimensions, Exterior | 8.7" H x 20.1" W x 16.6" D |
| 222mm H x 510mm W x 510mm D | |
| UL Classified to ANSI Z358.1-2014 | Yes |
| Water Inlet Size NPT | 1/2 in (F) |
| Minimum Operating Pressure | 2 bar g, 29 PSI |
| Maximum Operating Pressure | 6 bar g, 87 PSI |
| Water Flow Eye/Face Liters/min | 11.4 |
| Water Flow Eye/Face US Gal/min | 3 |
| Material Specifications | Eye/facewash diffusers: Chrome plated brass with stainless steel mesh. |
| Operating Valve Material | 316L Stainless |
| Eye/Face Wash Bowl Material | Green Powder-Coated Stainless Steel |
| Mounting Type | Table |
| Pipework Material | Stainless Steel |
| Activation Method | Push Plate |
| Eye/Face Wash Bowl Interior Dimensions | 10.25" W x 10.25" D |
| 260mm W x 260mm D | |
| Minimum Ambient Temperature, °F | 41 |
| Minimum Ambient Temperature, °C | 5 |
| Maximum Ambient Temperature, °F | 95 |
| Maximum Ambient Temperature, °C | 35 |
