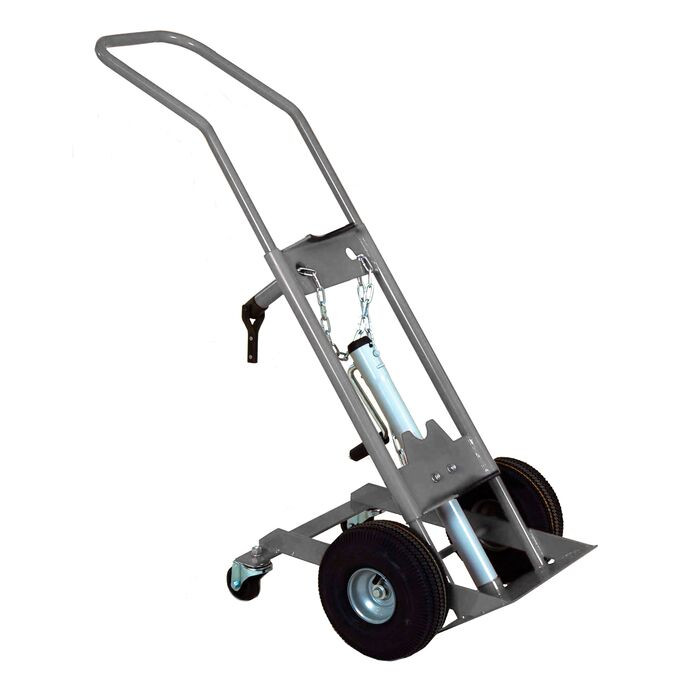

Lift-and-Load Single Cylinder Hand Truck - 35054

Model No
Warranty icon

Made in USA

Usually ships in 5 days Please contact customer service at
800-798-9250 for lead times.

Compliance OSHA Compliance

Product Summary

  • Built-in clamping system with welded loop chain secures the cylinder for lifting and transport.
  • Accepts cylinder sizes from 4- to 12-in (102- to 305-mm) diameter wide


Designed to lift, transport, and install gas cylinders on welding carts, platforms, pallets and in cabinets or other elevated surfaces. The manual lift system has a jack with an 11-inch (279-mm) extension geared to make lifting easy with approximately 10 turns of the crank per vertical inch.

Includes pneumatic 10.5-in (267-mm) main wheels and wide-set, dual 3-in (5-mm) rear swivel casters for increased stability and maneuverability. Fully welded construction, protected with durable, corrosion resistant, red powder-coat finish.


More Information
Model No 35054
UPC 697841210103
Cylinder Capacity 1
Minimum Cylinder Diam (in) 4
Cylinder Capacity with Max Cylinder Dia (1) 12 inch
Rear Casters Yes
Rear Casters (inch) 3
Rear Casters (mm) 76
Main Wheel Type Pneumatic
Main Wheel Size (inch) 10.5
Main Wheel Size (mm) 267
Weight Capacity (lb) 1000
Weight Capacity (kg) 454
Strap Style Clampable Chain
Straps Per Cylinder 1
Material Specifications Steel
Complies with NFPA 1 Fire-Code Yes
NFPA 55 Yes
OSHA Compliance Yes
Net Weight, lbs 69
Net Weight, kg 31
Net Dimensions (W x D x H) 22 x 20 x 56 inches
559 x 508 x 1422 mm



Download Specification PDF
