Lithium-Ion Battery Charging Cabinet, 4kWh TECR, 2 Doors, Manual Close, Gray - 231703

Model No
231703
$2,950.00
In Stock

Usually ships in 1-2 days Please contact customer service at
800-798-9250 for lead times.

Warranty icon

Made in USA

Product Summary

  • Ideal for charging and temporary storage of lithium-ion batteries
  • 4kWh TECR maximum total capacity – includes 8-receptacle power strip
  • Heat-reactive label changes colors when external temperatures reach 120° Fahrenheit
  • Shelf capacity: 65 lbs of evenly distributed weight
  • Cabinet Exterior Dimensions: 24-in H x 43-in W x18-in D

Description

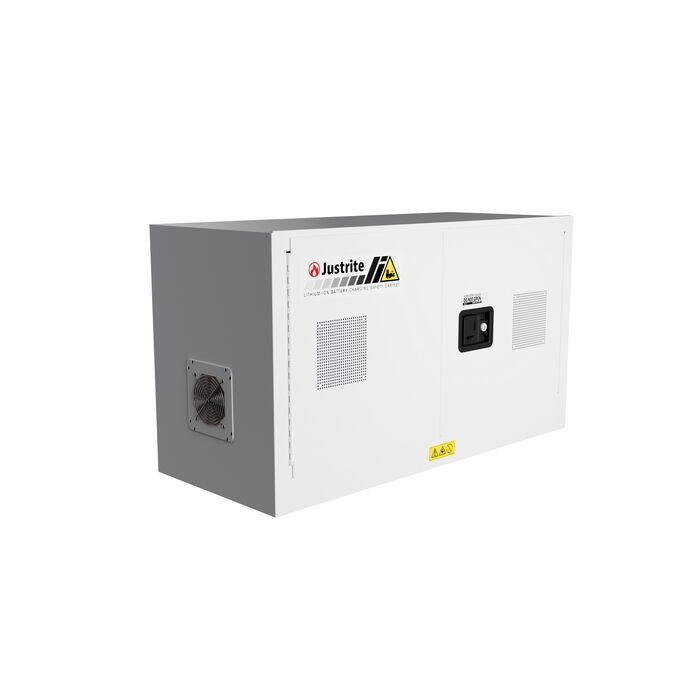

Lithium-Ion Battery Charging Cabinet

Introducing Justrite's lithium-ion battery charging and storage cabinet, fortified with ChargeGuard™ for ultimate protection. This state-of-the-art cabinet features multiple layers of advanced shielding, specifically designed to reduce the risks of battery fires and thermal runaway.

This patent-pending design for our lithium-ion battery cabinet offers the highest level of protection. With eight receptacles, it allows for simultaneous charging of multiple batteries up to a maximum of 4kWh, providing a reliable and efficient solution. The lightweight, benchtop design allows users to conveniently relocate the cabinet with minimal effort, while lockable doors help control access to lithium-ion batteries while preventing opportunities for theft.

Rest assured that your people, property, and the environment are safeguarded when using Justrite’s family of products. Trust Justrite's lithium-ion cabinet as a secure and comprehensive solution for combatting lithium-ion battery fires.

Battery Storage Cabinet Construction

The Justrite battery cabinet is expertly crafted from sturdy 18-gauge (1 mm) steel, ensuring durability and security. Its exterior dimensions measure 24-in H x 43-in W x 18-in D.  The design includes double-walled sides, top, and bottom, with a 1-1/2-inch (3.8 cm) air gap between the walls. The manual-close doors feature baffled vents with a unique flame arrester pattern, supported by continuous piano hinges. The cabinet also includes a grounding attachment, leveling feet, and a three-point stainless steel bullet latching system, ensuring a secure and reliable door closure while enhancing resistance to heat and corrosion. The flush-mounted door handle comes with a key lock for added security.

Inside the cabinet, you'll find a fixed shelf with a safe load capacity of 65 lbs. One Axial fan helps to regulate temperature and features sliding doors that close and obstruct the fan opening if the internal temperature exceeds 135° Fahrenheit. Additionally, the cabinet is equipped with an 8-receptacle power strip, providing you with a controlled space for charging your lithium-ion batteries.

Required Utilities: This product is intended to be plugged into a dedicated 120VAC/60Hz GFCI supply using a minimum14 gauge cord. (Supply cord not included with cabinet)

Specifications

More Information
Model No 231703
Badge New
UPC 697841272095
International Model No. 231703
Color Gray
Material Specifications 18-Gauge CR Steel
Number of Doors 2
Door Type Manual Close
Number of Shelves 1
Adjustable Shelves No
Dimensions, Exterior 43"W x 18"D x 24"H
1092mm x 457mm x 610mm
Dimensions, Interior 39.5"W x 14.562"D x 19.5"H
1003mm x 370mm x 495mm
Height (Inches) 24
Width (Inches) 43
Depth 18
Net Weight, lbs 157
Net Weight, kg 58.5

There are over 5,000 Lithium-ion Battery fires per year.

The National Fire Protection Association (NFPA) estimates the direct and indirect costs for USA commercial business fires to be $15.9 billion, annually.

*According to a 2018 U.S. Consumer Product Safety Commission Report,

Lithium-Ion Battery Charging and Storage Cabinet

Most lithium-ion battery fires occur while charging. The Justrite Lithium-Ion Battery Charging Safety Cabinet is made with a proprietary 9-layer ChargeGuard™ system that helps minimize potential losses.

Engineered with a pressure relief vent system and a double wall with air gap to help maintain a safe-to-touch temperature outer shell with color-changing tabs, and a filtration system to filter and absorb toxins emitted from lithium-ion battery fires.

Warranty

10-year Structural

1-year Serviceable Parts

MADE IN THE USA

Justrite Safety Group™, the pioneers of workplace fire prevention and containment since 1894.

Safety Features Designed for You

Double-wall Cabinets Construction

Welded double-wall steel provides a solid structure that keeps potential explosions contained.

Pressure Relief Vent System

Steel latch rods made with reinforced latch cradle plates ensure the cabinet doors remain closed.

Reinforced Steel Door Latch Plates

Welded double-wall steel provides a solid structure that keeps potential explosions contained.

Flame Arrestors

Double-layer wire-mesh flame arrestors absorb heat and stop flames from escaping the cabinet

Double Wall with Air Gap

Absorbent interior walls transfer the energy of high-temperature battery failures while a 1-1/2” inch air gap insulates, maintaining a surface temperature that is safe to touch.

Door Hinge Flame Guards

Tight sealing door hinge with flame guard prevents fires escaping through the door hinges, preventing secondary fires outside the cabinet

Spring Loaded Dampers

Automatic Damper flaps close when the cabinet temperature reaches 135°F to reduce the release of harmful smoke and gases by as much as 99%.

Unique Filtration System

Pressure Relief Venting System with an integrated filter traps smoke and absorbs harmful toxins.

Heat Activated Expanding Door Seals

Intumescent seals swell as temperatures rise to prevent smoke, fumes, and flames from escaping from the door frame.

The Clear Advantage: Compare and See the Benefits

Containment Solution

Justrite Lithium-ion

Standard Flammable Storage Cabinet

Storage Container

Competition

Flame Containment

Smoke Mitigation

Explosion Containment

Charging Capability

Temperature Regulation

Safe-Touch Shell

Lockable

USA Manufactured

The Best Choice for Lithium Battery Storage

Crossflow Fan Ventilation System

A constant supply of fresh air pulling into the cabinet helps keep the batteries cool while charging in their contained environment

Lockable Doors

Control the access to lithium-ion batteries, helping to prevent theft and enforce protocols with its lockable paddle latch handle

Convenient Benchtop Design

Keep your batteries easily accessible while they charge in a safe and contained environment at a convenient counter height

Small Footprint

Maintain safety and battery charging capacity without bulky storage units that consume valuable and limited space

Circuit Breaker

Automatic circuit breaker tripping feature in case of thermal runaway

Why are lithium-ion battery fires so dangerous?

Dangerously Explosive

Thermal Runaway—a chain reaction within the battery that can trigger combustion or blasts—causes fires to spread swiftly and expansively.

Highly Toxic

Lithium-ion battery fires release toxic gases and fumes that cause immediate health risks and negatively impact the environment.

Difficult to Extinguish

Lithium-ion battery fires are notoriously hard to put out, and can even reignite unexpectedly after being extinguished.

Gives Little Warning

The housing of lithium-ion batteries often conceals signs of malfunction, leaving little to no warning of an impending emergency.

Safety Features Designed for You

Double-wall Cabinetzs Construction

Welded double-wall steel provides a solid structure that keeps potential explosions contained.

Double-wall Cabinetzs Construction

Welded double-wall steel provides a solid structure that keeps potential explosions contained.

Double-wall Cabinetzs Construction

Welded double-wall steel provides a solid structure that keeps potential explosions contained.

Double-wall Cabinetzs Construction

Welded double-wall steel provides a solid structure that keeps potential explosions contained.

Double-wall Cabinetzs Construction

Welded double-wall steel provides a solid structure that keeps potential explosions contained.

Double-wall Cabinetzs Construction

Welded double-wall steel provides a solid structure that keeps potential explosions contained.

Double-wall Cabinetzs Construction

Welded double-wall steel provides a solid structure that keeps potential explosions contained.

Double-wall Cabinetzs Construction

Welded double-wall steel provides a solid structure that keeps potential explosions contained.

Double-wall Cabinetzs Construction

Welded double-wall steel provides a solid structure that keeps potential explosions contained.
