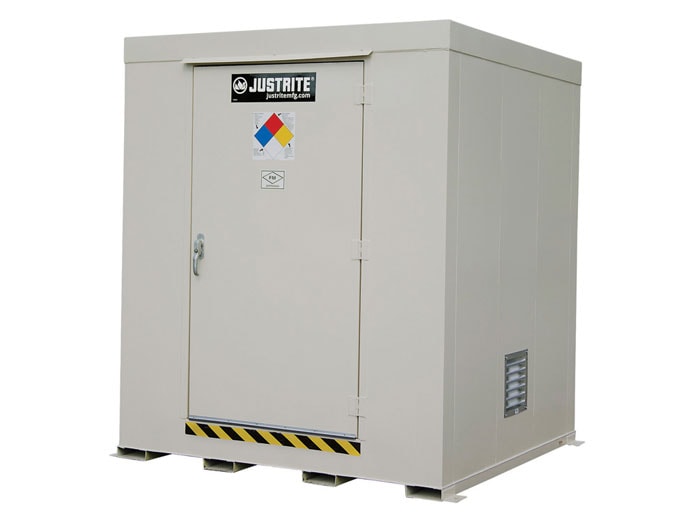

9-Drum, Explosion Relief Panels, Non-Combustible Outdoor Safety Locker - 911091

Model No
911091
Request a Quote

Usually ships in 40 business days

Warranty icon

Made in USA

Compliance Complies with NFPA Code 30 EPA Compliance
Approvals FM Approval

Product Summary


  • Safe and secure hazardous/chemical storage solution
  • Explosion relief panels designed to release at 20 psf
  • Rugged heavy gauge steel construction
  • Meets EPA, NFPA 30 and NFPA 1 requirements; FM-approved
  • Customizable with a variety of optional features and accessories

Description

Protect people and the environment and meet insurance requirements by storing hazardous materials in rugged, FM-approved Outdoor Safety Lockers.

Featuring non-combustible construction with heavy gauge steel and built-in secondary containment, every locker is fully compliant to meet EPA 40 CFR, NFPA 30 and NFPA 1 regulations. Proper chemical storage reduces poison hazards and accidents, minimizes contamination of chemicals, and prevents unwanted, costly fines.

Each locker features natural draft ventilation, NFPA 704 diamond decal for content identification, anchoring plates for hold down protection, and multiple static grounding connections for maximum safety. Forklift channels permit easy relocation.

Choose explosion relief panels for the storage of highly volatile Class 1A or dispensing of Class 1A and 1B flammables as defined by NFPA – always check with the local authority having jurisdiction to ensure safety by following all local regulations, including proper setback requirements.

Specifications

More Information
Model No 911091
UPC 697841158542
International Model No. 911091
Color Bone
Material Specifications Steel
FM Approval Yes
Complies with NFPA Code 30 Yes
Complies with NFPA 1 Fire-Code Yes
EPA Compliance Yes
Dimensions, Exterior 99" H x 91" W x 86" D
2515mm H x 2311mm W x 2184mm D
Dimensions, Interior 84" H x 78" W x 78" D
2134mm H x 1981mm W x 1981mm D
55-Gallon Drum Capacity 9
Base Capacity, lbs 9000
Base Capacity, kg 4082.3
Number of Doors 1
Door Type Standard
Door Hinge Right
Explosion Relief Panels (1) - 48-in x 60-in
Door Height inch 80
Door Width inch 42
Door Height mm 2032
Door Width mm 1067
Sump Capacity - Gallons 198
Sump Capacity - liters 750
Sump Depth - inch 7.0
Sump Depth - mm 178
Storage Capacity cubic feet (Int Volume) 296
Storage Capacity cubic meters (Int Volume) 8.4
Net Weight, lbs 2468.0
Net Weight, kg 1119.5
