10 Gallon Hughes Self-Contained Gravity-Fed Eyewash Station with Water Treatment Module, Pallet of 20 - 10GFEWPAQ

Model No
10GFEWPAQ
$10,493.00

Usually ships in 20 business days

Warranty icon

Made in USA

Product Summary

  • Pallet of 20 portable, gravity-fed eyewash stations with treatment modules
  • Simple to use with pull-down activation handle
  • Provides controlled 1.5 LPM (0.4GPM) water flow for 15 minutes
  • Includes a low maintenance non-chemical water treatment module providing 3-years of protection against pathogenic bacteria
  • Eyewash meets ANSI Z358.1 and EN15154 requirements

Specifications Download Specification PDF

Model No 10GFEWPAQ
Color Orange
UPC 805042001813

Description

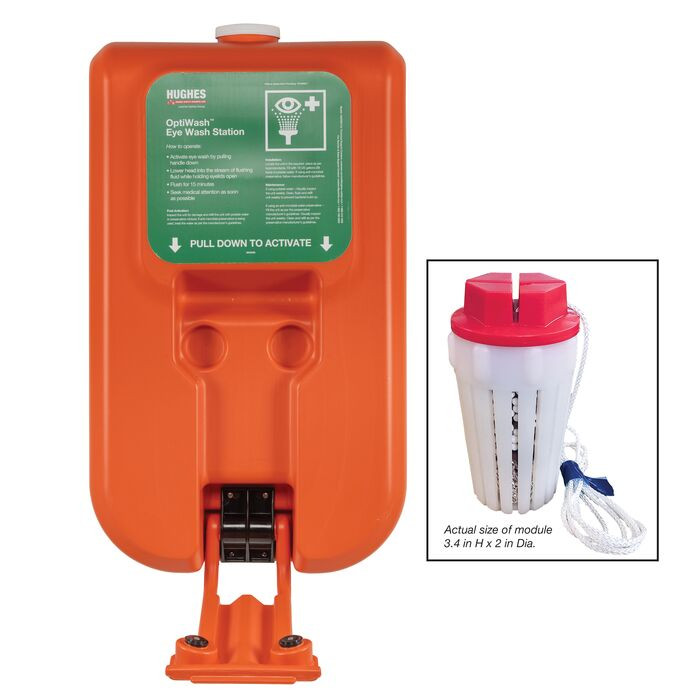

The Hughes 10GFEW portable, self-contained 10-gallon eyewash station is ideal for locations where continuous water isn’t available. Adding the Aquanella, non-chemical water treatment module provides a low-maintenance and cost-effective solution that protects against harmful bacteria for up to 3-years, helping to maintain clean, usable flushing solution in the eyewash, while reducing the need for regular water changes.

The gravity-fed eyewash supplies a continuous, controlled flow that exceeds the ANSI Z358.1 standard of 1.5 LPM (0.4 GPM) for 15 minutes. A concealed mounting bracket makes moving and relocating easy. High-visibility orange color is easy to identify in emergency situations. The unit is simple to use with a pull-down activation handle, and easy to maintain with a wide fill opening that enables quick inspections and filling.

The Aquanella AQ60 Water Treatment Module provides continuous, non-chemical protection against biofilm and harmful pathogenic bacteria, including Legionella and E. Coli. Designed for full immersion, each module effectively treats up to 16 gallons (60 liters) of potable eyewash water. The module creates an oxidizing and ionizing reaction when immersed, without imparting chemicals, compounds or metals into the water. The module is simple to install, inspect and replace. It has an unlimited shelf life when stored correctly, and a three-year service life that starts upon immersion.

Regular monitoring of water quality is recommended to ensure continued protection and ANSI compliance. Service the module semi-annually for optimal performance. Users are responsible for providing potable water when filling or refilling eyewash tanks.

This combination provides a reliable portable eyewash solution to meet eye safety needs in nearly any location.

Pallet of 20 eyewash stations and 20 water treatment modules with instructions.

Specifications

More Information
Model No 10GFEWPAQ
Color Orange
UPC 805042001813
Brand Justrite
Pallet Quantity 20
Liter Capacity 38
Net Weight, lbs 13
Net Weight, kg 5.8
Filled Weight, lbs 93
Filled Weight, kg 42
Dimensions, Exterior 29.5 inch H x 18 inch W x 7.25 inch D
Dimensions, Exterior 749.3mm H x 457.2mm W x 184.15mm D
UL Classified to ANSI Z358.1-2014 Yes
Water Inlet Size NPT 3 in Fill Opening
Water Flow Eye/Face Liters/min 2
Water Flow Eye/Face US Gal/min .55
Material Specifications PVC
Mounting Type Wall bracket
Activation Method Pull Handle
Minimum Ambient Temperature, °F 41
Minimum Ambient Temperature, °C 5
Maximum Ambient Temperature, °F 95
Maximum Ambient Temperature, °C 35
Operation Duration, min 15
