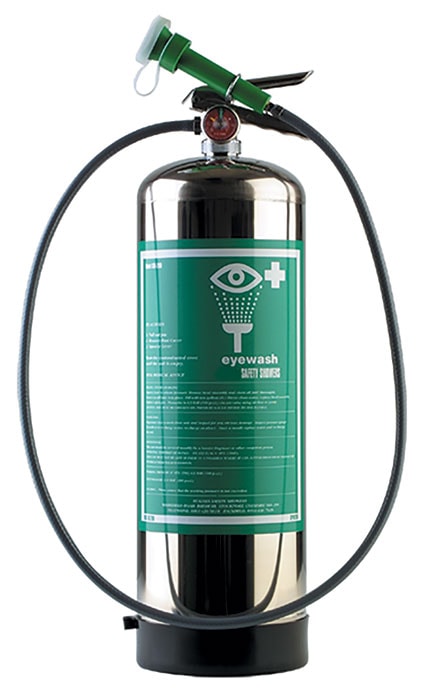

2.9 Gallon, Portable Self-Contained Hughes Eye Wash Station, Pressurized - 28GEW

Model No
28GEW
$648.00

Usually ships in 40 days Please contact customer service at
800-798-9250 for lead times.

Product Summary

Hughes Logo

  • 2.9 US gallon (11-liter) wash provides a gentle flow of water for two minutes
  • Incorporates a stainless steel cylinder with pressure gauge pressurized to 100 PSI (6.9 bar) via a Schrader tire valve
  • Handheld wash diffuser on flexible hose for ease of use

Description

This portable eye wash offers an effective solution in locations that are unsuitable for fixed installations and should be used as a secondary safety measure to supplement plumbed in eye/face wash units. Includes an inspection record tag for recording test and service history.

Specifications

More Information
Model No 28GEW
Color Green
UPC 805042000151
Capacity 2.9 gallon
Liter Capacity 11
Net Weight, lbs 9
Filled Weight, lbs 33
Filled Weight, kg 15
Dimensions, Exterior 27.2" H x 7.1" W x 7.1" D
692mm H x 180mm W x 180mm D
Minimum Operating Pressure 6.9 bar g, 100 PSI
Maximum Operating Pressure 69 bar g, 1000 PSI
Water Flow Eye/Face Liters/min 6
Water Flow Eye/Face US Gal/min 1.59
Mounting Type Portable
Activation Method Hand operated lever
Minimum Ambient Temperature, °F 41
Minimum Ambient Temperature, °C 5
Maximum Ambient Temperature, °F 95
Maximum Ambient Temperature, °C 35
Operation Duration, min 2
