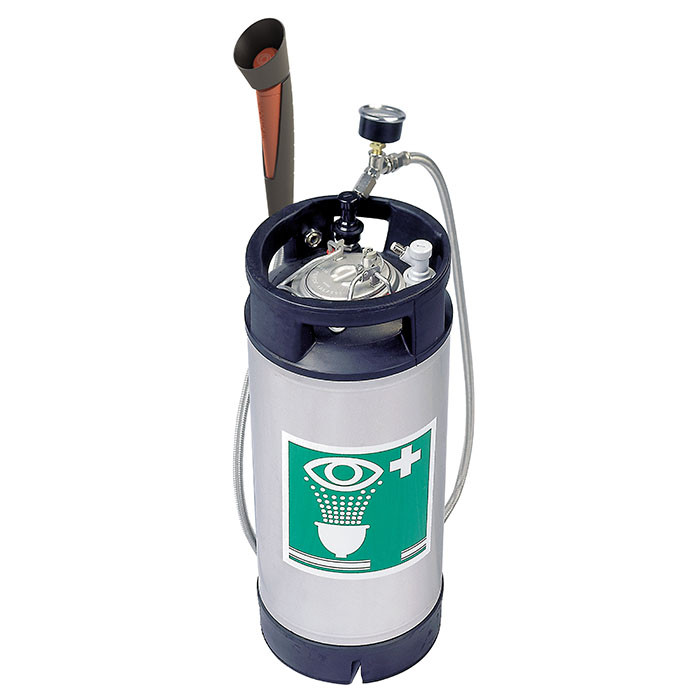

4 Gallon Portable Self-Contained Hughes Eye Wash Station, Pressurized - 38GEW

Model No
38GEW
$1,080.00
Warranty icon

Usually ships in 40 days Please contact customer service at
800-798-9250 for lead times.

Product Summary

Hughes Logo

  • 4 US gallon (15-liter) stainless steel cylinder with handheld drench hose effectively washes eyes, face and body
  • Delivers up to three minutes of water when pressurized to 100 PSI (6.9 bar) via a Schrader tire valve
  • Pressure gauge and dual action safety valve prevent over pressurization and allow the user to vent the cylinder for cleaning and maintenance

Description

This portable wash offers an effective solution in locations that are unsuitable for fixed installations and should be used as a secondary safety measure to supplement plumbed in eye/face wash units. Includes an inspection record tag for recording test and service history.

Specifications

More Information
Model No 38GEW
Color Green
UPC 805042000168
Capacity 4 gallon
Net Weight, lbs 11
Filled Weight, lbs 44
Filled Weight, kg 20
Dimensions, Exterior 32.3" H x 8.1" W x 11.5" D
820mm H x 205mm W x 205mm D
Minimum Operating Pressure 6.9 bar g, 100 PSI
Maximum Operating Pressure 69 bar g, 1000 PSI
Water Flow Eye/Face Liters/min 6
Water Flow Eye/Face US Gal/min 1.59
Material Specifications Stainless Steel Cylinder
Mounting Type Portable
Activation Method Squeeze grip operated with lock-on actuating button
Minimum Ambient Temperature, °F 41
Minimum Ambient Temperature, °C 5
Maximum Ambient Temperature, °F 95
Maximum Ambient Temperature, °C 35
Operation Duration, min 3
