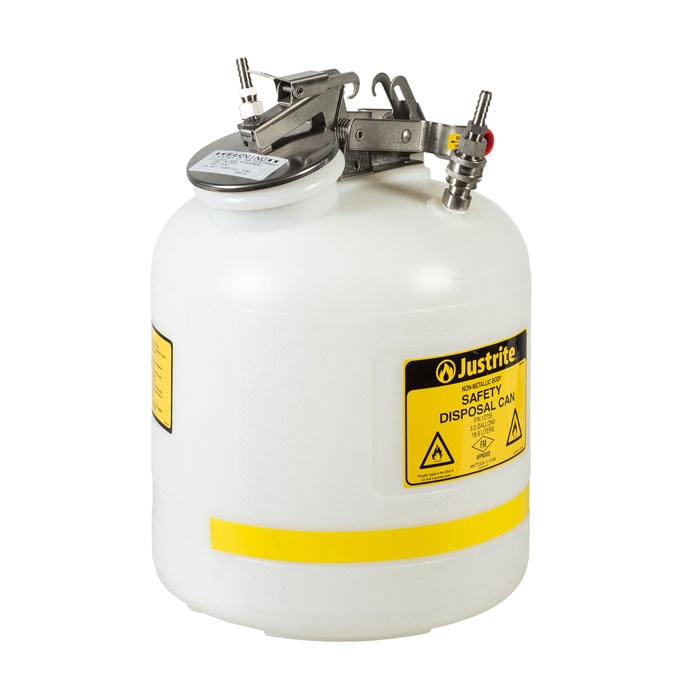

5 Gallon, Polyethylene Quick-Disconnect Disposal Safety Can, Stainless Steel Fittings for 3/8" Tubing, White - TF12755

Model No
TF12755
$800.00
In Stock

Usually ships in 1-2 days Please contact customer service at
800-798-9250 for lead times.

Warranty icon

Made in USA

Compliance OSHA Compliance Complies with NFPA Code 30
Approvals FM Approval

Product Summary

  • Ideal for HPLC waste applications
  • Provides hands-free solvent collection
  • Durable and safe
  • Features quick-disconnect system

Description

Ideal for HPLC waste applications:

  • Vapor and fire protection
  • Safeguard against accidental spills
  • Maximize safety and convenience

Hands-free solvent collection: Solvent flows freely from your process into the container through tubing making it suitable for either pump-fed or gravity-flow HPLC waste methods. Two disconnect fittings, one intake and one vent, eliminate back pressure in liquid flow disposal line and provide controlled handling of vapor.

Durability and safety: Translucent polyethylene container allows quick visual inspection of liquid level. Pouring spout is equipped with a stainless steel flame arrester, which reliably dissipates heat to prevent flashback ignition. Spring-loaded, sealed lid automatically vents to guard against explosion. Control odors with a coalescing/carbon filter.

Quick-Disconnect system

  • Easy-on, easy-off mechanism offers detachment of the can from the process without leaks, drips or vapor release. Once disconnected, the container is automatically sealed to prevent spills.
  • Valved quick-disconnect fittings automatically close when decoupled to prevent vapor or liquid release.
  • Stainless-steel fittings offer PTFE O-rings on standard containers. Also available with EPDM O-ring seals on customized cans.
  • Coalescing carbon filterOptional filters are for use with only round style cans.
  • Easy-carrying handle with fixed position latch keeps spring loaded cover open for convenient pouring during disposal.
  • Economically priced polypropylene barbed fittings offer EPDM O-rings.
  • Translucent color lets you check liquid level at a glance.

Specifications

More Information
Model No TF12755
UPC 697841059740
International Model No. TF12755
FM Approval Yes
OSHA Compliance Yes
Complies with NFPA Code 30 Yes
Color white
Material Specifications Polyethylene/Stainless Steel Disconnects
Dimensions, Exterior 20" H x 12" Outer Dia.
508mm H x 305mm Outer Dia.
Capacity 5 gallon
Liter Capacity 19
Fill/Pour Hole inch 3.65
Fill/Pour Hole mm 93
Net Weight, lbs 8.4
Net Weight, kg 3.8
