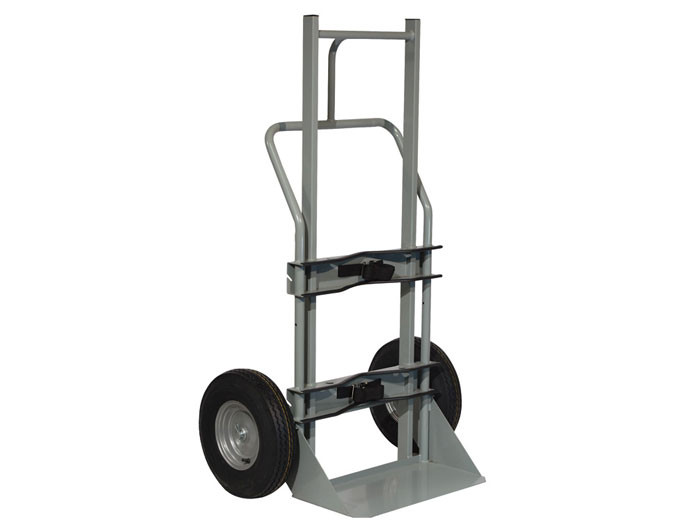

Single Cryogenic Cylinder Hand Truck, 10" Flat-Free Wheels - 35012

Model No
35012
$790.00

Usually ships in 16 business days

Warranty icon

Made in USA

Compliance OSHA Compliance

Product Summary

  • Configured with 10-in (406-mm) steel hub, foam filled flat-free wheels with dual ball bearings for easier rolling—less effort required
  • Rated at 1000-lb (454-kg) weight capacity
  • Holds one larger diameter propane or cryogenic cylinder from 9- to 18-in (229- to 457-mm)
  • Exclusive bumper guard edging with steel reinforced vinyl protects your cylinders from damage while providing extra grip

Description

Due to their weight, high-pressure contents, and unwieldy shape, industrial gas cylinders require a specially designed hand truck to minimize accidents and injuries. Constructed of 1-in (25-mm) and 1.25-in (32-mm) diameter steel tube with continuous welding, these hand trucks provides optimum safety, strength and longevity. Robust, v-shaped cylinder support cradles keep cylinder snug and secure, reducing cylinder rolling common in curved back designs. Two durable 1.5- x 66-in (38-mm x 1676-mm) polypropylene support straps, lab tested to 1138-lb (516-kg), feature steel cinch buckle and hold individual cylinders securely for safe transport.

Heavy-duty, 11-gauge (3-mm) floor plate with safety fins prevent warping or breaking. Features unique zero-lift height loading, allowing floor plate to lay flat, thereby eliminating the need to lift cylinder during loading and unloading. Corrosion-resistant powder-coat finish throughout for long life and smooth handling. Upper handle sections bolt in place for reduced package size in order to save on freight costs.

Helps comply with OSHA, NFP1, NFPA 55, and CGA.

Specifications

More Information
Model No 35012
UPC 697841209619
Cylinder Capacity 1
Minimum Cylinder Diam (in) 9
Cylinder Capacity with Max Cylinder Dia (1) 18 inch
Main Wheel Type Flat-Free
Main Wheel Size (inch) 10
Main Wheel Size (mm) 254
Weight Capacity (lb) 700
Weight Capacity (kg) 318
Strap Style Poly Cinch Strap with Steel Buckle
Straps Per Cylinder 2
Material Specifications Steel
Complies with NFPA 1 Fire-Code Yes
NFPA 55 Yes
OSHA Compliance Yes
CGA Yes
Net Weight, lbs 86
Net Weight, kg 39
Net Dimensions (W x D x H) 36 x 32 x 49 inches
914 x 813 x 1245 mm
