Stainless Steel Piston Pump For 30 And 55 Gallon Drums, with Flash Arrester - #07717

Model No
Warranty icon

Usually ships in 15 days Please contact customer service at
800-798-9250 for lead times.

Compliance OSHA Compliance
Approvals FM Approval

Product Summary

  • FM Approved
  • Stainless Steel
  • For 30 and 55 Gallon Drums

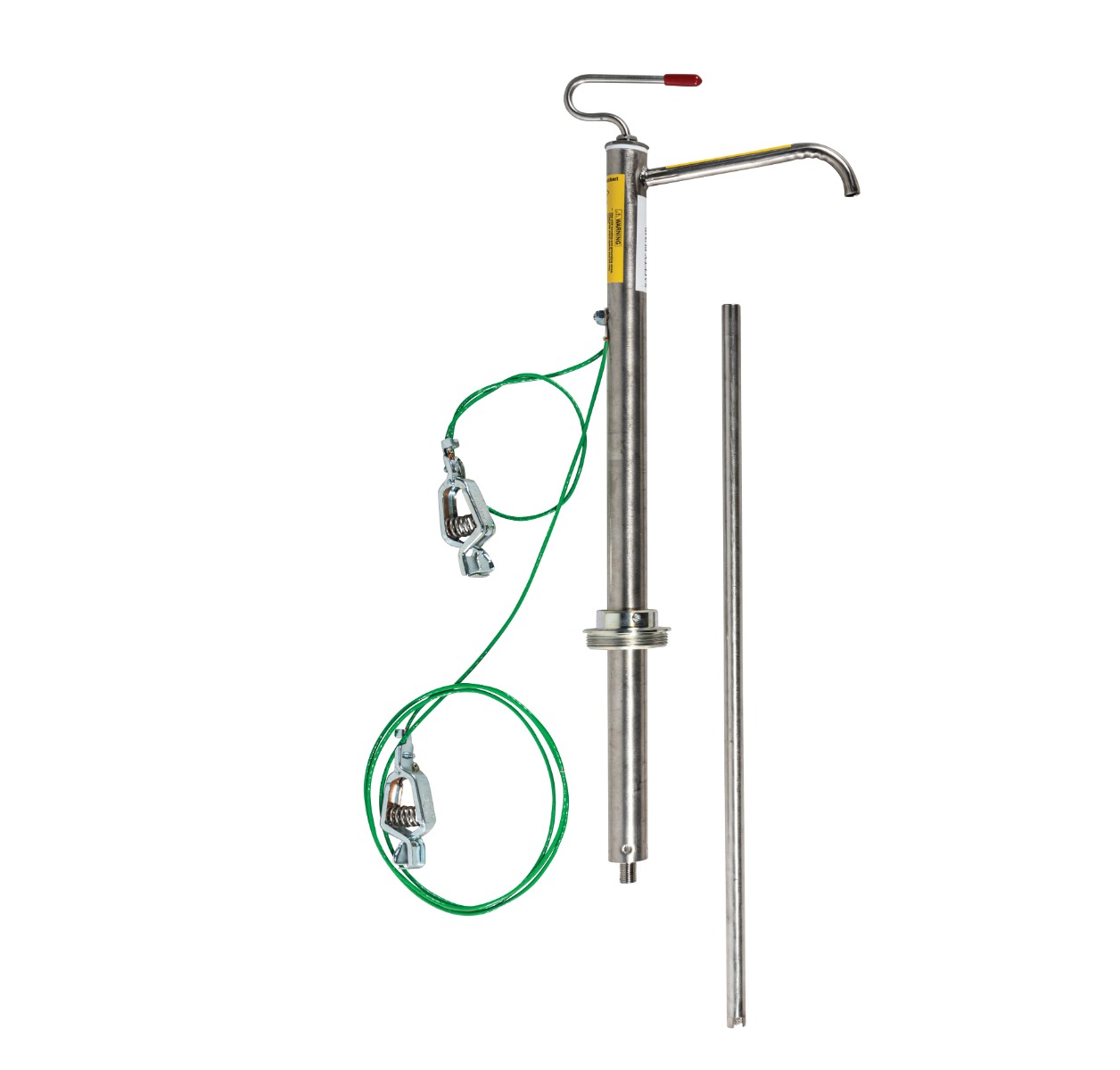

Because small quantity dispensing or controlled transferring of flammable liquids from 30 and 55 gallon drums is no easy task, this manually operated, stainless steel piston drum pump can help. It is FM approved and delivers up to 8 oz. per stroke, ideal for transferring flammable and combustible liquids in a controlled and safe manner. The pump can be used with up to 90 weight oil viscosity at 70F. Its body is constructed of stainless steel with PTFE seals, offering superior chemical resistance and a long life.

Included with the pump is a standard two-inch NPT threaded bung adapter and pick-up tube that allows the drum pump to reach up to 36 inches below the lid of the drum. A flash arrestor keeps contents safe from external flame flashbacks. The bonding and grounding clamps come pre-assembled and provide the means to safely ground the receiving container to avoid a static discharge.


More Information
Model No 07717
UPC 697841270688
Color Grey
Material Specifications Stainless Steel
Dimensions, Exterior 46" H x 9" W x 1.25" D
1168.4mm H x 228.6mm W x 31.75mm D
FM Approval Yes
OSHA Compliance Yes
Flame Arrestor, inch .5
Flame Arrestor, mm 12.7
Flame Arrestor Material Stainless Steel
Mouth Diameter - inch .5
Mouth Diameter - mm 12.7
Type Piston
Action Type Manual
Max Viscosity (Wt.) 90
Maximum Ambient Temperature, °F 140
Includes Pump, Pick-Up Tube, 2" NPT Bung Adapter, Grounding Wires with Clamps, Instructions Sheet
Net Weight, lbs 5
Net Weight, kg 2.27



Download Specification PDF
