Wall Bracket Kit With Prolypropylene Connector to Relocate The HPLC Coalescing/Carbon Filter - 28150

Model No

Made in USA

Usually ships in 20 days Please contact customer service at
800-798-9250 for lead times.

Need a bulk or special order? Get a quote

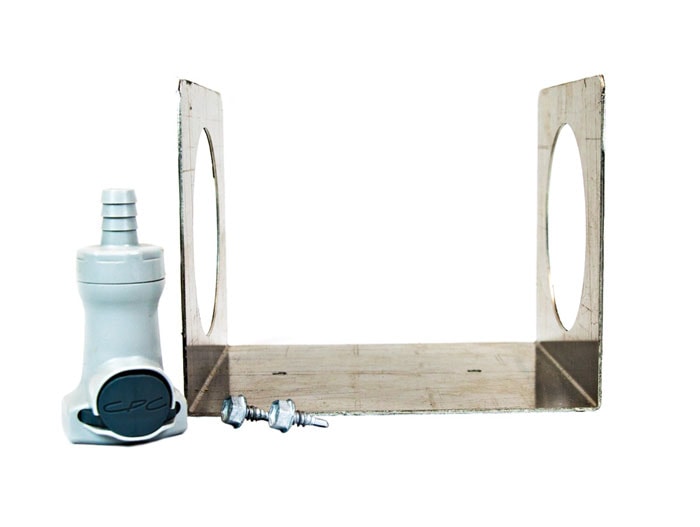

The Remote Wall Bracket Kit is ideal for applications using the Coalescing/Carbon Filter. Under typical conditions, these HPLC filters can be attached directly to the vapor release fitting on a HPLC Disposal Can. Where space is at a premium, it may be necessary to locate the filter in a remote location near the Disposal Can, such as a back wall. This accessory Bracket Kit is ideal for such circumstances. It consists of a 5" tall No. 304 stainless steel holder with a female quick-disconnect fitting and two self-tapping mounting screws. The disconnect fitting has a valve to provide a safe, fully closed system preventing vapor release when replacing filters. Fittings accommodate 3/8" OD (10mm) tubing, not included.

Product Summary:

  • Ideal for applications using the Coalescing/Carbon Filter
  • Prevents vapor release when replacing filters


There are no file attachments for this product.


More Information
Model No 28150
UPC 697841119420
International Model No. 28150
Color Silver
Material Specifications Stainless Steel/Polypropylene
Dimensions, Exterior 5" H x 4" W
127mm H x 102mm W
Net Weight, lbs 0.8
Net Weight, kg 0.4
Download Specification PDF
