Lithium-Ion Battery Charging Safety Cabinet
Justrite’s Lithium-Ion battery Charging Safety Cabinet is engineered to charge and store lithium batteries safely. Made with a proprietary 9-layer ChargeGuard™ system that helps minimize potential losses from fire, smoke, and explosions caused by Lithium batteries.
4 Reasons Lithium Battery Fires are More Dangerous
Dangerously Explosive
Thermal Runaway, a chemical reaction that can lead to a fire or explosion, and the combination of gases and pressure build-up unique to lithium-ion batteries make fires spread further and faster
Highly Toxic
Hydrogen Fluoride fumes are emitted when a lithium-ion battery is ignited posing several short-term and chronic threats to people including respiratory and skin irritation, dizziness, headaches, and suffocation as well as a negative environmental impact.
Difficult to Extinguish
Lithium-ion batteries can generate it’s own heat and fuel, explode, have chemical reactions with water, and burn at higher than-typical temperatures that can melt concrete, steel, and water hoses, and can reignite after extinguishing.
Gives Little Warning
The enclosed nature of lithium-ion batteries can mask potential indicators of battery failure and can create a fast-spreading fire or explosion without warning or notice.
The Dangers of
Lithium-Ion Batteries
Lithium-ion batteries are vulnerable to failure from thermal runaway, producing fire, explosions, smoke, and toxic gases, resulting in catastrophic property losses while endangering people.
9-Layer
ChargeGuard™
Our proprietary 9-Layer ChargeGuard™ Containment System prevents potential catastrophic losses by containing lithium-ion battery fires, smoke, and explosions.
9-Layer ChargeGuard™ Containment System
Double-wall Cabinet Construction
Welded double-wall steel provides a solid structure that keeps potential
explosions contained.
Pressure Relief Vent System
Vented door panels dampen the explosive force from thermal runaway and battery failure.
Reinforced Steel Door Latch Plates
Steel latch rods made with reinforced latch cradle plates ensure the cabinet doors remain closed.
Flame Arrestors
Double-layer wire-mesh flame arrestors absorb heat and stop flames from escaping the cabinet.
Double Wall with Air Gap
Absorbent interior walls transfer the energy of high-temperature battery failures while a 1-1/2” inch air gap insulates, maintaining a surface temperature that is safe to touch.
Door Hinge Flame Guards
Tight sealing door hinge with flame guard prevents fires escaping through the door hinges, preventing secondary fires outside the cabinet.
Spring Loaded Dampers
Automatic Damper flaps close when the cabinet temperature reaches 135°F to reduce the release of harmful smoke and gases by as much as 99%.
Unique Filtration System
Pressure Relief Venting System with an integrated filter traps smoke and absorbs harmful toxins.
Heat Activated Expanding Door Seals
Intumescent seals swell as temperatures rise to prevent smoke, fumes, and flames from escaping from the door frame.
4kWh of total energy
containment (TECR)
The number of batteries that can be safely stored and charged in the cabinet will vary based on the amount of energy within each battery. Use the chart below to identify the energy of your batteries and how many can be in the Justrite lithium-ion battery charging cabinet at one time.

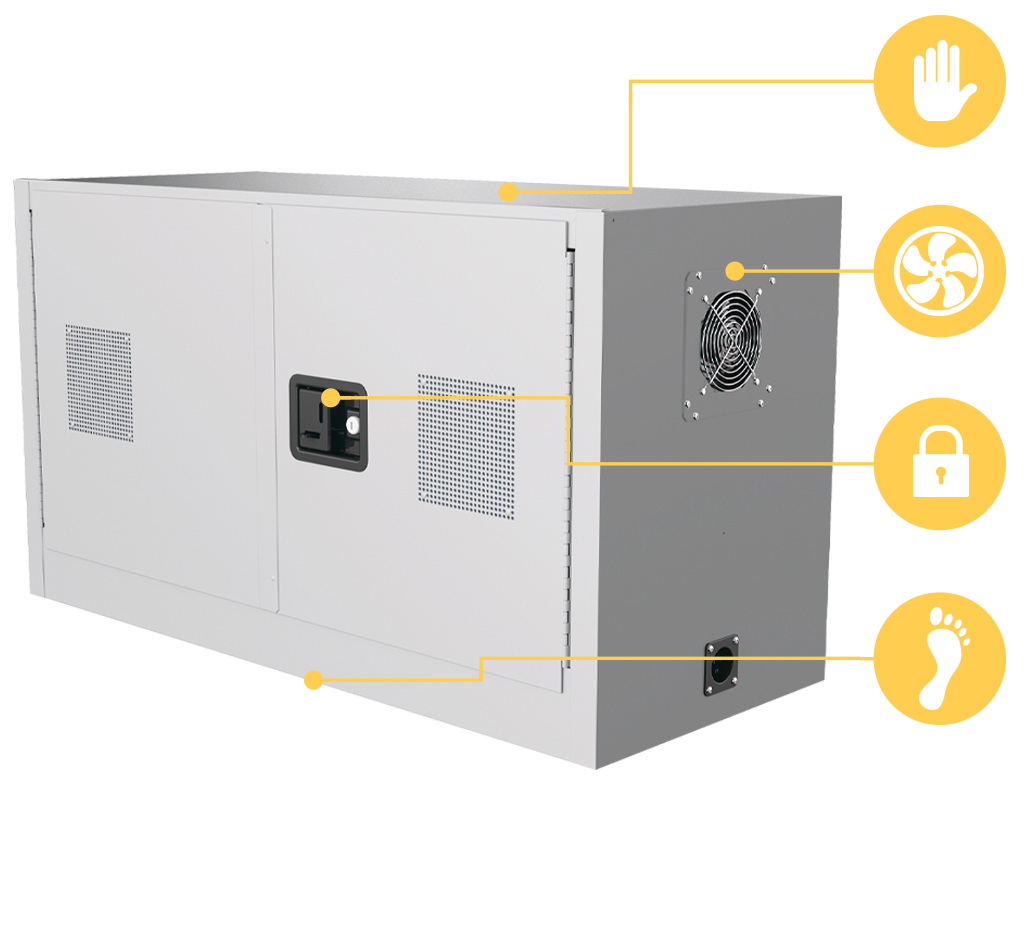

Additional Highlights
Convenient Benchtop Design
Keep your batteries easily accessible while they charge in a safe and contained environment at a convenient counter height.
Crossflow Fan Ventilation System
A constant supply of fresh air pulling into the cabinet helps keep the batteries cool while charging in their contained environment.
Lockable Doors
Control the access to lithium-ion batteries, helping to prevent theft and enforce protocols with its lockable paddle latch handle.
Small Footprint
Maintain safety and battery charging capacity without bulky storage units that consume valuable and limited space.
Circuit Breaker
Automatic circuit breaker tripping feature in case of Thermal runaway.
Easy to Use
1. Remove Your Batteries from Tools
2. Store Your Batteries in the Cabinet
3. Securely Close the Cabinet Doors
Lithium-Ion BatteryCharging Safety Cabinet
Justrite’s Lithium-Ion battery Charging Safety Cabinet is engineered to charge and store lithium batteries safely. Made with a proprietary 9-layer ChargeGuard™ system that helps minimize potential losses from fire, smoke, and explosions caused by Lithium batteries.
